Reverse Voltage 5V DIPs LED CHIPS Offering 50 Lifespan and 620nm Wavelength Red Light Designed for Lighting Applications

Product Description:

The DIP LED CHIPS are a versatile and reliable lighting solution designed to meet a wide range of applications, offering exceptional performance and durability. These LED chips come in three vivid wavelength options: 620nm for red, 525nm for green, and 470nm for blue, providing vibrant and crisp colors suitable for various electronic projects and lighting systems. Whether you're working on display panels, indicator lights, or decorative lighting, these LEDs deliver consistent brightness and color accuracy that enhance visual appeal and functionality.

One of the standout features of these DIP LED CHIPS is their robust operating temperature range, spanning from -40°C to +85°C. This wide thermal tolerance ensures that the LEDs perform reliably in harsh environmental conditions, including outdoor installations and industrial settings where temperature fluctuations are common. The ability to operate efficiently under extreme temperatures makes these LEDs an excellent choice for applications requiring long-term stability and resilience.

Designed with a forward current rating of 20mA, these LEDs balance brightness and energy efficiency, providing optimal illumination without excessive power consumption. This forward current specification ensures that the LEDs can be driven safely and effectively in most standard circuits, making them easy to integrate into existing designs or new projects. The consistent current rating also simplifies the design process, allowing engineers and hobbyists to predict performance and longevity accurately.

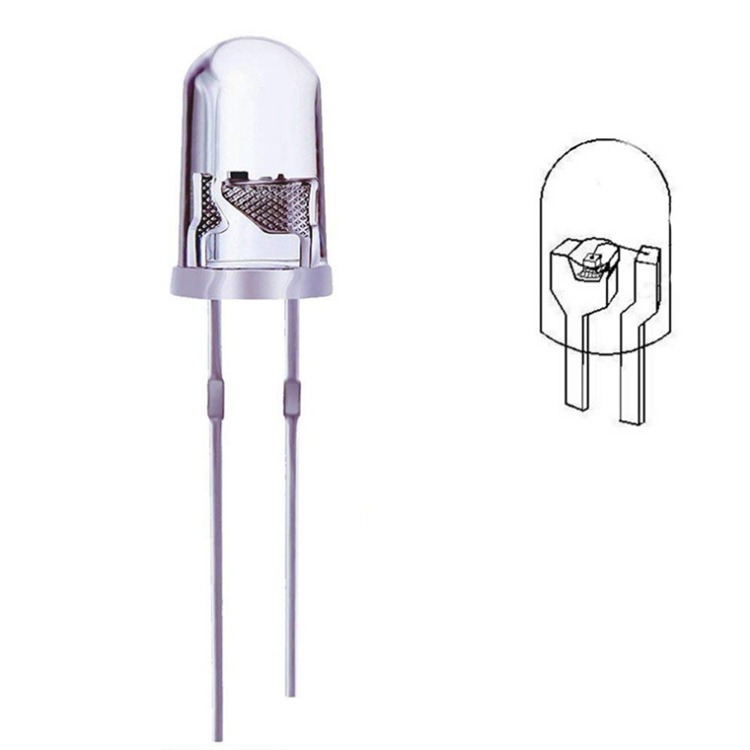

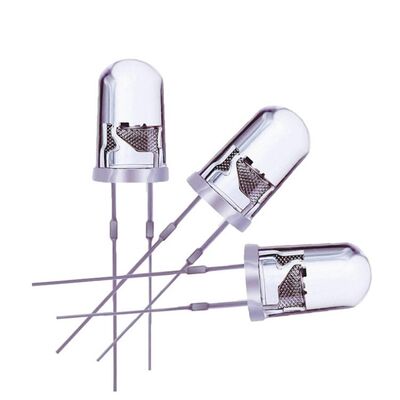

The DIP (Dual In-line Package) format of these LED chips is a key attribute that contributes to their popularity and ease of use. The DIP package facilitates straightforward installation on printed circuit boards (PCBs) through-hole mounting, ensuring secure mechanical and electrical connections. This packaging style is especially favored for its durability and ease of replacement, making maintenance and upgrades hassle-free. Among the DIP options, the 5MM DIP LED CHIPS and the 10mm Straw Hat dip led chip variations stand out, catering to different size requirements and aesthetic preferences.

Furthermore, these LED chips feature a reverse voltage rating of 5V, providing protection against potential damage from reverse polarity in circuits. This characteristic enhances the longevity and reliability of the LEDs, safeguarding them against common electrical mishaps during installation and operation. The reverse voltage tolerance ensures that the LEDs maintain their integrity even in complex and demanding electrical environments.

Among the product range, the UV square dip led chip offers a specialized option for applications requiring ultraviolet light emission. This variant is perfect for uses such as sterilization, counterfeit detection, and UV curing, expanding the functionality of DIP LED chips beyond visible light applications. The availability of UV square dip led chip alongside the standard red, green, and blue LEDs allows designers to choose the exact light spectrum needed for their specific application.

In summary, these DIP LED CHIPS combine vibrant color options, robust operating parameters, and user-friendly packaging to deliver a high-quality lighting component. Whether you are selecting the classic 5MM DIP LED CHIPS for general illumination, the 10mm Straw Hat dip led chip for enhanced visibility and aesthetic appeal, or the specialized UV square dip led chip for niche applications, these LEDs provide exceptional value and performance. Their wide operating temperature range, stable forward current, and protective reverse voltage rating make them suitable for both consumer electronics and industrial uses, ensuring dependable operation across various conditions.

By incorporating these DIP LED CHIPS into your projects, you can achieve bright, reliable, and energy-efficient lighting solutions that meet modern standards and requirements. Their combination of technical excellence and practical design makes them a preferred choice for engineers, designers, and hobbyists alike.

Features:

• Product Name: DIP LED CHIPS
• Package Type: DIP (Dual In-line Package)
• Lifespan: 50,000 Hours
• Emission Colors: Red, Green, Blue, Yellow, White
• Reverse Voltage: 5V
• Wavelengths: 620nm (Red), 525nm (Green), 470nm (Blue)
• Includes red dip led for vibrant red light emission
• Available as DIP 8MM RGB LED CHPS for versatile lighting applications
• Features RGB straw hat dip led design for enhanced light distribution

Technical Parameters:

Applications:

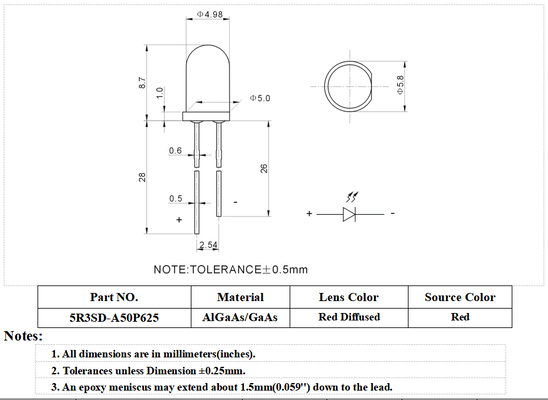

The DIP LED CHIPS, model number GH-DIP5MMSD-5DX, are high-quality through-hole LED components manufactured in China, designed to meet a wide array of application occasions and scenarios. These oval DIP LED chips and 5mm round DIP LEDs are well-suited for use in various electronic devices, lighting systems, and display technologies, thanks to their reliable performance and certified standards, including CE, ROHS, LM-79, and LM-80. With a viewing angle of 60°, forward current of 20mA, and forward voltage ranging from 1.8V to 3.3V, these LEDs provide bright and consistent illumination in red (620nm), green (525nm), and blue (470nm) wavelengths.

One of the primary application occasions for the DIP LED CHIPS is in indicator lights and status displays for consumer electronics, appliances, and automotive dashboards. Their through-hole mounting type makes them easy to integrate into printed circuit boards (PCBs), ensuring strong mechanical stability and optimal electrical connectivity. The oval DIP LED chip and 5mm round DIP LED variants are particularly favored for their compact size and versatility, enabling use in compact and space-constrained environments.

In addition, the IR round DIP LED versions are extensively used in remote control devices, security systems, and sensing applications where infrared light transmission is essential. These IR LEDs provide reliable performance in transmitting invisible infrared signals, which are critical for communication between devices and for motion detection technologies.

The DIP LED CHIPS also find wide usage in decorative and commercial lighting, such as signage, display panels, and architectural lighting, where vibrant and efficient color output is necessary. Thanks to the high supply ability of 9,000,000 pieces each week and a minimum order quantity of 6000 pieces, these LEDs are ideal for large-scale manufacturing and industrial applications. Their affordable price range, from $0.001 to $0.008 per piece, makes them a cost-effective choice without compromising on quality.

Packaging is handled with CANTOR PACKING, ensuring that the LEDs are securely packed for safe delivery within 3-7 days. Payment terms include T/T, LC, and DP, providing flexible options for global buyers. Overall, the DIP LED CHIPS GH-DIP5MMSD-5DX series is an excellent solution for engineers and manufacturers seeking dependable, certified, and versatile LED components for a broad spectrum of lighting and electronic applications.

Customization:

Our DIP LED CHIPS product, model number GH-DIP5MMSD-5DX, offers exceptional customization services tailored to your specific needs. Manufactured in China, these oval dip led chips and IR round dip led options come with certifications including CE, ROHS, LM-79, and LM-80, ensuring high quality and reliability.

We support a minimum order quantity of 6000PCS with competitive pricing ranging from $0.001 to $0.008 per unit. Each chip features a chip size of 0.5mm x 0.5mm, forward voltage between 1.8V and 3.3V, and a reverse voltage of 5V. Available emission colors include Red, Green, Blue, Yellow, and White, suitable for various applications.

Our packaging uses CANTOR PACKING to guarantee product safety during shipment. Delivery time is prompt, typically between 3 to 7 days, supported by flexible payment terms such as T/T, LC, and DP. With a supply ability of 9,000,000PCS each week, we can meet large-scale demands efficiently.

The DIP LED CHIPS provide a lifespan of up to 50,000 hours, making them a durable choice for your projects. Whether you require oval dip led chip designs or IR round dip led configurations, our product customization services ensure your specific technical and aesthetic requirements are met with precision and quality.

Support and Services:

Our DIP LED Chips are designed to provide reliable and efficient lighting solutions across various applications. For technical support, please ensure you have the product model number and batch code ready to facilitate prompt assistance.

We offer comprehensive services including product selection guidance, installation instructions, troubleshooting tips, and warranty support. Our technical team is equipped to help with any issues related to electrical specifications, compatibility, and performance optimization.

To maximize the lifespan and efficiency of your DIP LED Chips, follow the recommended operating conditions outlined in the product datasheet. Avoid exposure to excessive heat, moisture, or mechanical stress during installation and usage.

If you encounter any defects or performance issues within the warranty period, please refer to our warranty policy for repair or replacement procedures. Our service commitment ensures customer satisfaction and product reliability.

For detailed technical documentation, including datasheets, application notes, and installation manuals, please visit our official website or authorized distributor portals.

Packing and Shipping:

Product Packaging:

The DIP LED Chips are carefully packaged to ensure maximum protection during transit. Each chip is placed in anti-static trays or tubes to prevent damage from electrostatic discharge. The trays or tubes are then securely sealed and placed inside sturdy, cushioned cartons. Packaging materials are chosen to minimize movement and absorb shocks, ensuring the chips arrive in perfect condition.

Shipping:

We offer worldwide shipping for DIP LED Chips with multiple delivery options including standard, expedited, and express services. All shipments are handled by reliable carriers to guarantee timely and safe delivery. Tracking information will be provided once the order is dispatched. Customers are advised to inspect the package upon arrival and report any damages immediately to facilitate prompt resolution.

FAQ:

Q1: What certifications do DIP LED CHIPS have?

A1: DIP LED CHIPS are certified with CE, ROHS, LM-79, and LM-80, ensuring high quality and safety standards.

Q2: What is the minimum order quantity for the DIP LED CHIPS model GH-DIP5MMSD-5DX?

A2: The minimum order quantity for the GH-DIP5MMSD-5DX model is 6000 pieces.

Q3: Where are DIP LED CHIPS manufactured?

A3: DIP LED CHIPS are manufactured in China.

Q4: What are the payment terms available for purchasing DIP LED CHIPS?

A4: The available payment terms for DIP LED CHIPS are T/T (Telegraphic Transfer), LC (Letter of Credit), and DP (Documents against Payment).

Q5: How long does delivery take for DIP LED CHIPS orders?

A5: The delivery time for DIP LED CHIPS is typically between 3 to 7 days.
