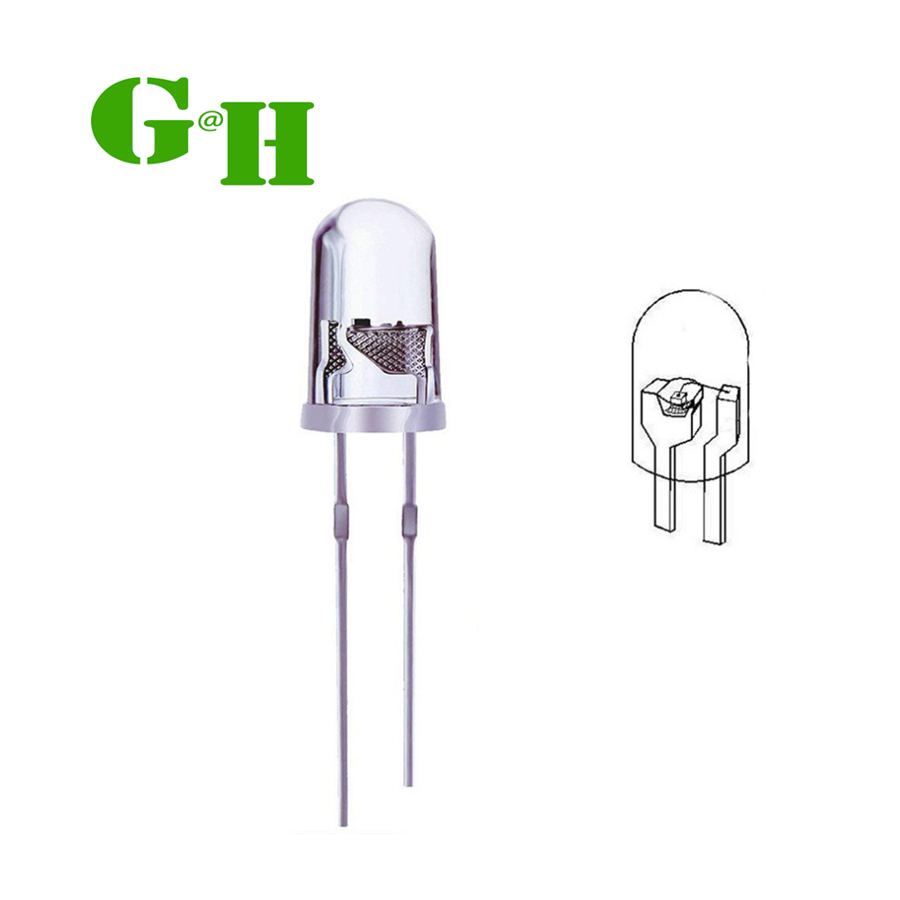

Luminous Intensity 1000 Mcd 5MM DIP LED CHIPS offering 60 Degree Viewing Angle perfect for signage lighting and electronic indicator solutions

Product Description:

The DIP LED chips are an essential component in the world of electronic lighting and display technology, offering reliable performance and versatility for a wide range of applications. Designed with a forward current rating of 20mA, these LED chips ensure efficient power consumption while delivering bright and consistent illumination. The forward voltage ranges between 1.8V to 3.3V, making them compatible with various circuit designs and power supplies, which enhances their adaptability in different electronic projects.

One of the standout features of these DIP LED chips is their mounting type. They utilize a through-hole mounting system, which is highly favored for its durability and strong mechanical connection on printed circuit boards (PCBs). This mounting method makes the LEDs easier to install and replace compared to surface-mount devices, especially in prototyping and educational setups. The through-hole design also contributes to better heat dissipation, which can prolong the lifespan of the LEDs and maintain stable performance over time.

The package type employed is the classic DIP (Dual In-line Package), known for its robust and compact construction. The DIP format not only simplifies the integration of the LED chips into electronic circuits but also ensures that they can be used in a variety of standard sockets and breadboards. This packaging style is particularly popular in hobbyist and industrial applications alike due to its ease of use and reliability.

With a viewing angle of 60°, these DIP LED chips offer a focused beam of light, making them ideal for indicators, displays, and signaling devices where directional lighting is essential. The 60-degree viewing angle strikes a balance between brightness and coverage, providing clear visibility without excessive light dispersion. This characteristic is especially beneficial in applications that require precise light targeting, such as panel indicators and status signals.

Among the popular variants available in this category are the 5mm round DIP LED and the 5mm 546 oval DIP blue LED diode. The 5mm round DIP LED is widely appreciated for its classic round lens shape, which provides uniform light distribution and is suitable for a variety of general-purpose lighting needs. Meanwhile, the 5mm 546 oval DIP blue LED diode stands out with its distinct oval shape and vibrant blue light emission. This particular blue LED diode is favored in applications requiring color-coded indicators or aesthetic lighting effects, enhancing both functionality and visual appeal.

The 5mm 546 oval DIP blue LED diode, in particular, is renowned for its high-quality construction and consistent color output. Its oval lens design allows for a slightly different light dispersion pattern compared to the standard round LEDs, which can be advantageous in specific design scenarios where light direction and intensity need to be finely controlled. This makes it a preferred choice in specialized electronic projects, automotive lighting, and decorative displays.

In summary, the DIP LED chips with a forward current of 20mA, through-hole mounting, and a forward voltage range of 1.8V to 3.3V are an excellent choice for anyone seeking dependable and versatile LED components. Their DIP package type ensures ease of installation and compatibility with a wide range of circuit boards, while the 60° viewing angle provides effective and focused illumination. Whether you opt for the classic 5mm round DIP LED or the uniquely shaped 5mm 546 oval DIP blue LED diode, these LED chips deliver outstanding performance suitable for both professional and hobbyist applications.

Choosing these DIP LED chips guarantees a combination of durability, efficiency, and visual clarity, making them indispensable in electronic design and lighting solutions. Their proven reliability and adaptable specifications ensure they remain a popular choice in the market for LED components.

Features:

• Product Name: DIP LED CHIPS
• Wavelength: 620nm (Red), 525nm (Green), 470nm (Blue)
• Emission Color: Red, Green, Blue, Yellow, White
• Storage Temperature: -40°C To +100°C
• Lifespan: 50,000 Hours
• Luminous Intensity: 1000 Mcd
• Includes 5mm 546 oval dip blue led diode for vibrant blue emission
• Supports RGB straw hat dip led configuration for versatile color mixing
• Compatible with 234 led diode setups for enhanced lighting solutions

Technical Parameters:

Applications:

The DIP LED CHIPS, model GH-DIP5MMSD-5DX, represent a high-quality lighting solution originating from China, designed to meet diverse application occasions and scenarios. These 5MM DIP LED CHIPS are manufactured using premium Gallium Arsenide (GaAs) chip material, ensuring excellent performance, durability, and efficiency. With certifications including CE, ROHS, LM-79, and LM-80, these LED chips guarantee compliance with international standards and reliable long-term operation.

One of the primary application occasions for the DIP LED CHIPS is in indicator lights and display panels. Their compact chip size of 0.5mm x 0.5mm and forward voltage range of 1.8V to 3.3V make them ideal for use in electronic devices, signal indicators, and automotive lighting. The reverse voltage of 5V further enhances their stability in various electrical environments.

The UV square dip led chip variant within this product range is particularly suited for sterilization equipment, counterfeit detection tools, and curing systems, where ultraviolet light is essential. Its robust lifespan of 50,000 hours ensures longevity and reduced maintenance costs, making it favorable for industrial and commercial uses.

In addition, the Green dip led chip is widely applied in decorative lighting, garden lighting, and traffic signals, offering vibrant and energy-efficient illumination. The versatility of these chips extends to architectural lighting, signage, and backlighting applications, where color consistency and brightness are critical.

With a minimum order quantity of 6000PCS and a competitive price range between 0.001 and 0.008 USD per chip, the DIP LED CHIPS are tailored for large-scale manufacturing and distribution. The supply ability of 9,000,000PCS each week and a swift delivery time of 3-7 days ensure that customers receive their orders promptly. Packaging is handled through CANTOR PACKING, guaranteeing secure transport and handling.

Payment terms such as T/T, LC, and DP provide flexible options for global buyers, facilitating smooth transactions. Overall, the DIP LED CHIPS GH-DIP5MMSD-5DX series is an excellent choice for various lighting needs, from industrial and commercial to decorative and specialty applications, combining high quality, efficiency, and cost-effectiveness.

Customization:

Our DIP LED CHIPS product, model number GH-DIP5MMSD-5DX, offers customized solutions tailored to your specific needs. Manufactured in CHINA and certified with CE, ROHS, LM-79, and LM-80, these LEDs guarantee quality and reliability.

We specialize in customization services for various types including IR round dip led, red dip led, and white starw hat 5MM 3MM led, ensuring you get the exact specifications required for your projects.

Featuring a DIP (Dual In-line Package) design, these LED chips measure 0.5mm x 0.5mm and are made from high-quality Gallium Arsenide (GaAs), providing a long lifespan of up to 50,000 hours. They operate reliably within a storage temperature range of -40°C to +100°C.

Our minimum order quantity is 6000PCS, with pricing ranging from $0.001 to $0.008 per piece. We use CANTOR PACKING to ensure safe delivery and maintain a supply ability of 9,000,000PCS each week.

Delivery time is prompt, typically within 3-7 days, and we accept flexible payment terms including T/T, LC, and DP to accommodate your business needs.

Choose our DIP LED CHIPS customization services for high-quality, reliable, and efficient LED solutions tailored perfectly for your applications.

Support and Services:

Our DIP LED Chips are designed to deliver superior brightness and reliability for a wide range of applications. For technical support, we provide comprehensive assistance including product selection guidance, installation instructions, and troubleshooting tips to ensure optimal performance.

We offer detailed datasheets and application notes to help you understand the specifications and integration methods of our DIP LED Chips. Our support team is equipped to assist with custom configurations and answer any technical questions you may have.

In addition to technical support, we provide a range of services such as product testing, quality assurance, and warranty support. Our goal is to ensure that your experience with our DIP LED Chips is seamless and satisfactory from purchase through deployment.

For detailed information on handling, storage, and maintenance of DIP LED Chips, please refer to our technical documentation. We are committed to supporting your projects with expert advice and reliable service.

Packing and Shipping:

Product Packaging:

The DIP LED Chips are carefully packaged to ensure maximum protection during transit. Each chip is individually placed in anti-static trays or tubes to prevent damage from electrostatic discharge. These trays are then securely packed into sturdy cardboard boxes with cushioning materials to absorb shocks and vibrations. The packaging is clearly labeled with product details, quantity, and handling instructions to facilitate easy identification and safe handling.

Shipping:

We offer reliable shipping options worldwide to deliver DIP LED Chips promptly and safely. Products are shipped via trusted carriers with tracking capabilities to monitor the shipment status. Depending on the destination, shipping methods include air freight, sea freight, or courier services. All shipments comply with international shipping regulations and include necessary documentation such as commercial invoices and packing lists. We strive to ensure timely delivery and excellent customer satisfaction.

FAQ:

Q1: What is the model number of the DIP LED CHIPS product?

A1: The model number of the DIP LED CHIPS product is GH-DIP5MMSD-5DX.

Q2: Where are the DIP LED CHIPS manufactured?

A2: The DIP LED CHIPS are manufactured in China.

Q3: What certifications do the DIP LED CHIPS have?

A3: The DIP LED CHIPS are certified with CE, ROHS, LM-79, and LM-80.

Q4: What is the minimum order quantity and price range for the DIP LED CHIPS?

A4: The minimum order quantity for the DIP LED CHIPS is 6000 pieces, with a price range of $0.001 to $0.008 per piece.

Q5: What are the delivery time and payment terms for ordering DIP LED CHIPS?

A5: The delivery time is typically 3-7 days. Payment terms accepted include T/T, L/C, and D/P.

Q6: How are the DIP LED CHIPS packaged for shipment?

A6: The DIP LED CHIPS are packaged using CANTOR PACKING to ensure safe delivery.

Q7: What is the supply capacity for the DIP LED CHIPS?

A7: The supply ability is 9,000,000 pieces each week, ensuring large orders can be fulfilled promptly.
