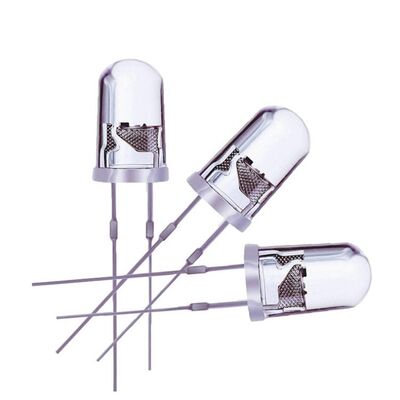

Viewing Angle 60 Degrees 3MM DIP RED CHIPS LIGHT Temperature Range Minus 40 Celsius To Plus 100 Celsius Designed For Electronic Signal Lighting

Product Description:

The DIP LED Chips are high-quality, reliable light-emitting diode components designed for various electronic and lighting applications. With a luminous intensity of 1000 Mcd, these chips provide bright and vivid illumination, making them ideal for use in indicators, displays, and decorative lighting. Available in a wide range of emission colors including Red, Green, Blue, Yellow, and White, these DIP LED chips offer versatility to meet the diverse needs of different projects and devices.

One of the standout features of this product is its impressive lifespan of up to 50,000 hours, ensuring long-lasting performance and reducing the need for frequent replacements. This durability makes the DIP LED chips a cost-effective solution for both commercial and personal use. The wavelength specifications are precisely tailored for each color: 620nm for Red, 525nm for Green, and 470nm for Blue, delivering accurate and vibrant color output. This precise wavelength control enhances color consistency and visual appeal in various lighting applications.

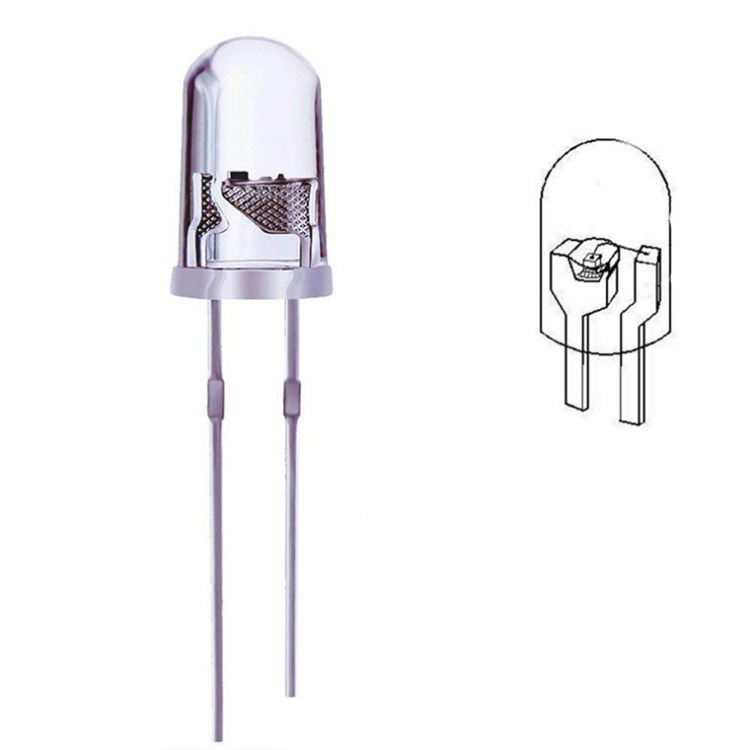

These DIP LED chips employ a through-hole mounting type, which facilitates easy installation on printed circuit boards (PCBs). The through-hole design provides a secure and stable connection, suitable for both manual and automated assembly processes. This mounting style is popular in many industries due to its robustness and ease of use, making the DIP LED chips a preferred choice for designers and manufacturers alike.

Offering a variety of sizes, including 3MM, 5MM, 8MM, and 10MM oval DIP LED configurations, these chips cater to different spatial and design requirements. Whether you need a compact 3MM chip for small-scale projects or a larger 10MM oval dip LED for more prominent lighting effects, this product line covers a broad spectrum of options. The availability of color diffused DIP LED chips ensures that the emitted light is evenly distributed and visually pleasing, reducing glare and enhancing the overall lighting quality.

Specifically, the Green DIP LED chip stands out for its vibrant and intense green emission at a wavelength of 525nm, making it perfect for applications requiring clear and bright green light. The color diffused dip LED chips, available in multiple colors, use diffusion technology to soften the emitted light, providing a more uniform and attractive appearance. This feature is particularly beneficial in decorative lighting and indicators where aesthetics are crucial.

In summary, the DIP LED Chips combine high luminous intensity, long lifespan, precise wavelength control, and versatile mounting options to deliver exceptional performance. Their availability in multiple colors and sizes, including the popular 3MM, 5MM, 8MM, and 10MM oval dip LED formats, makes them suitable for a wide range of applications. Whether you are designing electronic devices, creating signage, or enhancing decorative lighting, these DIP LED chips offer a reliable and efficient lighting solution that meets high standards of quality and durability.

Features:

• Product Name: DIP LED CHIPS
• Luminous Intensity: 1000 Mcd
• Reverse Voltage: 5V
• Chip Size: 0.5mm X 0.5mm
• Package Type: DIP (Dual In-line Package)
• Operating Temperature Range: -40°C to +85°C
• Compatible with 10mm round DIP LED
• Suitable for 5mm 546 oval DIP blue LED diode applications
• Can be used with white starw hat 5MM 3MM LED configurations

Technical Parameters:

Applications:

The DIP LED CHIPS, model number GH-DIP5MMSD-5DX, are highly versatile and reliable components designed for a wide range of application occasions and scenarios. Manufactured in China and certified with CE, ROHS, LM-79, and LM-80 standards, these chips guarantee superior quality and performance, making them an excellent choice for various lighting and electronic projects.

One of the standout features of the DIP LED CHIPS is the oval dip led chip design, which provides efficient light distribution and enhanced durability. The 5mm Straw Hat led chip variant offers a classic and widely compatible size for numerous applications, ensuring easy integration into existing systems. With a compact chip size of just 0.5mm x 0.5mm, these LEDs are perfect for intricate circuit designs requiring precise and reliable light sources.

Thanks to their forward voltage range of 1.8V to 3.3V and a reverse voltage of 5V, these LEDs operate efficiently under various electrical conditions. Their luminous intensity of 1000 Mcd ensures bright and vivid illumination, suitable for both indoor and outdoor uses. Additionally, the 0.06w dip led diode power rating allows for energy-saving lighting solutions without compromising brightness or lifespan.

With an impressive lifespan of 50,000 hours, DIP LED CHIPS are ideal for long-term applications such as indicator lights, signage, automotive lighting, and decorative lighting. Their robust construction and high supply ability of 9,000,000 pieces each week make them suitable for large-scale manufacturing and mass production needs. The minimum order quantity of 6000PCS and competitive pricing ranging from 0.001 to 0.008 per unit provide cost-effective solutions for both small and large businesses.

Packaging details include CANTOR PACKING to ensure safe and secure shipment, with delivery times between 3 to 7 days. Flexible payment terms such as T/T, LC, and DP further facilitate smooth transactions. Overall, the DIP LED CHIPS GH-DIP5MMSD-5DX are perfect for applications in consumer electronics, automotive dashboards, architectural lighting, display panels, and any project requiring reliable, bright, and energy-efficient LED solutions.

Customization:

Introducing the DIP LED CHIPS product, model number GH-DIP5MMSD-5DX, proudly made in CHINA. Our 3MM DIP RED CHIPS LIGHT offers superior performance with a wavelength of 620nm for red, 525nm for green, and 470nm for blue, delivering a luminous intensity of 1000 Mcd. These red dip led components are designed with through-hole mounting type, ensuring easy installation and reliable operation.

Certified with CE, ROHS, LM-79, and LM-80, our DIP LED CHIPS guarantee quality and safety. They operate efficiently within a temperature range of -40°C to +85°C and can be stored safely between -40°C to +100°C. We provide packaging using CANTOR PACKING to ensure product protection during transit.

With a minimum order quantity of 6000PCS and a competitive price range of 0.001-0.008 USD per piece, we supply up to 9,000,000PCS each week, ensuring timely availability. Delivery time is fast, between 3-7 days, with flexible payment terms including T/T and LC.DP.

Our DIP LED CHIPS are ideal for applications requiring white starw hat 5MM 3MM led solutions, combining durability and high luminous intensity for various lighting needs. Trust DIP LED CHIPS for your next project, offering reliable red dip led performance with exceptional quality and supply capacity.

Support and Services:

Our DIP LED Chips come with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product specifications, application guidance, and troubleshooting assistance to help you integrate our LED chips seamlessly into your projects.

Our technical team is available to assist with product selection, electrical and thermal management advice, and customization options tailored to your specific requirements. We also offer detailed datasheets and application notes to support your design process.

In addition, we provide warranty services and quality assurance to guarantee the reliability and longevity of our DIP LED Chips. Our commitment is to deliver high-quality products along with expert support to enhance your experience and success.

Packing and Shipping:

Product Packaging: Each DIP LED chip is carefully packaged in anti-static trays to prevent any damage during handling and transportation. The trays are then securely placed inside sturdy, cushioned boxes to ensure maximum protection. Packaging is designed to maintain the integrity and quality of the LEDs, preventing exposure to dust, moisture, and static electricity.

Shipping: We offer reliable shipping options worldwide with tracking available for all orders. Products are shipped using trusted carriers to guarantee timely delivery. Each shipment is inspected before dispatch to ensure that all items meet quality standards. For bulk orders, customized packaging and shipping solutions are available upon request to suit specific needs.

FAQ:

Q1: What is the model number of the DIP LED CHIPS?

A1: The model number of the DIP LED CHIPS is GH-DIP5MMSD-5DX.

Q2: Where are the DIP LED CHIPS manufactured?

A2: The DIP LED CHIPS are manufactured in China.

Q3: What certifications do the DIP LED CHIPS have?

A3: The DIP LED CHIPS are certified with CE, ROHS, LM-79, and LM-80.

Q4: What is the minimum order quantity for the DIP LED CHIPS?

A4: The minimum order quantity for the DIP LED CHIPS is 6000 pieces.

Q5: What payment terms are accepted for purchasing DIP LED CHIPS?

A5: The accepted payment terms for DIP LED CHIPS are T/T, L/C, and D/P.

Q6: What is the typical delivery time for orders of DIP LED CHIPS?

A6: The typical delivery time for DIP LED CHIPS is between 3 to 7 days.

Q7: How are the DIP LED CHIPS packaged?

A7: The DIP LED CHIPS are packaged using CANTOR PACKING.

Q8: What is the price range for the DIP LED CHIPS?

A8: The price range for the DIP LED CHIPS is from $0.001 to $0.008 per piece.

Q9: What is the supply capacity of the DIP LED CHIPS?

A9: The supply capacity is up to 9,000,000 pieces each week.
