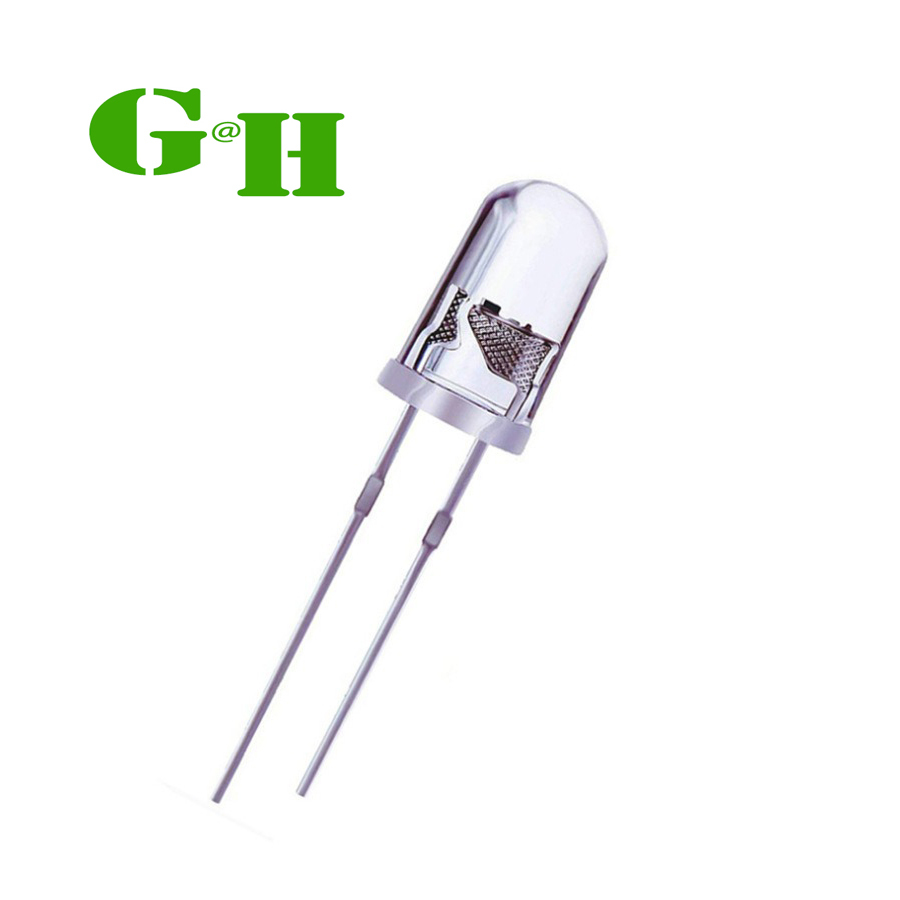

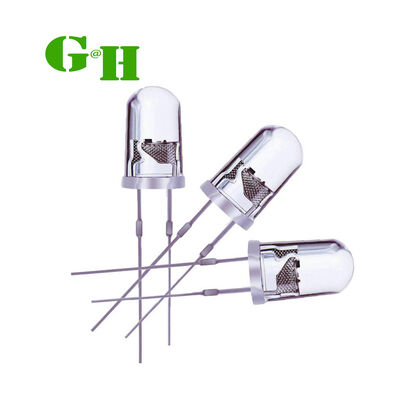

5V Reverse Voltage DIP LED Chips Red 620nm Wavelength Forward Voltage 1.8V 3.3V Ideal for Outdoor and Indoor Lighting Applications

Product Description:

The DIP LED Chips are a versatile and reliable lighting solution designed to meet a wide range of applications in electronics and illumination. Featuring a classic 8mm Straw Hat LED chip design, these LEDs are engineered for high performance and durability. Known for their robustness and ease of use, the 234 led diode series offers exceptional brightness and long-lasting operation, making them ideal for both commercial and hobbyist projects.

One of the standout features of these DIP LED Chips is their emission color variety. Available in Red, Green, Blue, Yellow, and White, these LEDs provide vibrant and distinct light outputs suitable for indicators, displays, and decorative lighting. Whether you need a bright red indicator or a cool white light source, the selection ensures that you can find the perfect color to suit your needs.

Constructed using high-quality Gallium Arsenide (GaAs) chip material, these LEDs offer enhanced efficiency and reliability. GaAs is known for its excellent semiconductor properties, which contribute to a stable light output and longer lifespan. This material choice also helps maintain consistent performance even under varying environmental conditions.

The 0.06w dip led diode specification highlights the energy efficiency of these LEDs, consuming minimal power while delivering optimal brightness. This low power consumption makes them ideal for battery-powered devices and applications where energy saving is a priority. Additionally, the DIP package facilitates easy installation on through-hole circuit boards, ensuring compatibility with a wide range of electronic assemblies.

Designed to operate within a broad temperature range, the DIP LED Chips can function reliably from -40°C to +85°C. This wide operating temperature range ensures that the LEDs perform well in harsh conditions, including outdoor environments and industrial applications where temperature fluctuations are common. Furthermore, the storage temperature range of -40°C to +100°C guarantees the LEDs remain stable and ready for use even after prolonged storage periods.

Another important electrical characteristic of these LEDs is the reverse voltage of 5V. This parameter ensures that the LEDs can withstand voltage reversals up to 5 volts without damage, providing added protection and reliability in various circuit designs. This makes the 234 led diode series particularly suitable for use in automotive, consumer electronics, and industrial control systems where voltage spikes may occur.

The 8mm Straw Hat led chip design not only contributes to the aesthetic appeal but also to the optical performance of the LEDs. The unique shape helps in better light dispersion and reduces glare, enhancing visibility and readability. This makes these LEDs an excellent choice for status indicators, signage, and instrument panels where clear and uniform illumination is essential.

In summary, the DIP LED Chips featuring the 234 led diode model combine versatile emission colors, energy-efficient operation at 0.06w, and robust construction with GaAs chip material. Their ability to operate across wide temperature ranges and withstand reverse voltages up to 5V makes them reliable for diverse applications. Whether you are designing a new electronic device, upgrading an existing system, or working on creative lighting projects, these LEDs provide consistent performance and ease of integration. With their classic 8mm Straw Hat led chip package, they are a dependable choice for professionals and enthusiasts alike.

Features:

• Product Name: DIP LED CHIPS
• Storage Temperature: -40°C to +100°C
• Operating Temperature: -40°C to +85°C
• Package Type: DIP (Dual In-line Package)
• Wavelength Options: 620nm (Red), 525nm (Green), 470nm (Blue)
• Mounting Type: Through-hole
• Includes 5mm 546 oval dip blue LED diode
• Available in DIP 8MM RGB LED CHIPS
• Also offers 3MM DIP RED CHIPS LIGHT

Technical Parameters:

Applications:

The DIP LED CHIPS, model number GH-DIP5MMSD-5DX, manufactured in China, are highly versatile components ideal for various lighting and display applications. Certified with CE, ROHS, LM-79, and LM-80, these LED chips ensure high quality and reliability. With a minimum order quantity of 6000PCS and a competitive price range of 0.001 to 0.008 per unit, they are perfect for large-scale production needs. The packaging is handled with CANTOR PACKING, ensuring safe delivery within 3 to 7 days. Payment terms are flexible, including T/T, LC, and DP, making transactions convenient for international buyers. The supply ability of 9,000,000PCS each week guarantees a steady and ample stock to meet high demand.

These DIP LED CHIPS feature a 60° viewing angle, which provides focused illumination suitable for indicator lights, signage, and display panels. Their robust operating temperature range from -40°C to +85°C and storage temperature range from -40°C to +100°C make them highly durable for outdoor and industrial environments. The wavelength options of 620nm (Red), 525nm (Green), and 470nm (Blue) offer vibrant and distinct colors, perfect for colorful displays and lighting projects. The reverse voltage of 5V ensures compatibility with various electronic circuits without compromising performance.

Specifically, the DIP LED CHIPS are ideal for integration in popular LED types such as the 5mm 546 oval dip blue LED diode, which is widely used in electronic devices and indicator lights due to its clear and bright blue illumination. Additionally, the 5mm Straw Hat LED chip benefits from the high quality and consistent output of these DIP LED CHIPS, making it a popular choice for decorative lighting and status indicators. The 10mm round dip LED also leverages these chips for enhanced brightness and durability, commonly found in automotive lighting, outdoor signage, and industrial applications.

In summary, the DIP LED CHIPS GH-DIP5MMSD-5DX are perfectly suited for a broad range of application occasions and scenarios including electronic devices, automotive lighting, outdoor displays, signage, decorative lighting, and industrial indicators. Their reliable certifications, durable temperature ranges, and variety of colors make them an excellent choice for manufacturers and designers seeking high-performance LED solutions that combine quality, efficiency, and cost-effectiveness.

Customization:

Our DIP LED CHIPS product, model number GH-DIP5MMSD-5DX, is a premium choice originating from CHINA and certified with CE, ROHS, LM-79, and LM-80 standards. We specialize in product customization services tailored to your needs, offering a variety of emission colors including Red, Green, Blue, Yellow, and White.

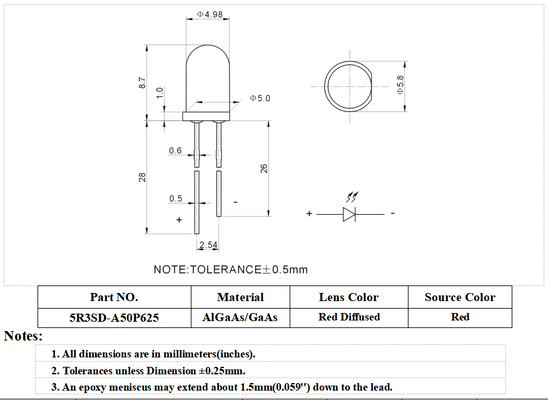

The DIP LED CHIPS feature a compact chip size of 0.5mm x 0.5mm, a reverse voltage of 5V, and a forward current of 20mA, housed in a reliable DIP (Dual In-line Package). Our range includes popular variants such as the 8mm Straw Hat led chip, UV flat top dip led chip, and the widely used 5MM DIP LED CHIPS, ensuring compatibility with diverse applications.

We offer flexible pricing from $0.001 to $0.008 per piece with a minimum order quantity of 6000PCS. Packaging is done through CANTOR PACKING to ensure safety and quality during transit. Delivery time is swift, typically within 3-7 days, supported by a strong supply ability of 9,000,000PCS each week.

Payment terms are convenient, accepting T/T, LC, and DP to accommodate various business requirements. Trust DIP LED CHIPS for reliable, customizable LED solutions designed to meet your specific project demands with high efficiency and quality assurance.

Support and Services:

Our DIP LED Chips are designed for high performance and durability in various lighting applications. For optimal use, ensure the chips are operated within the specified voltage and current ratings to avoid damage and extend lifespan.

When handling the DIP LED Chips, use anti-static measures to prevent electrostatic discharge, which can harm the internal circuitry. Proper soldering techniques should be applied, with recommended temperature profiles to maintain product integrity.

For installation, ensure correct polarity alignment to prevent malfunction. The chips are suitable for both indoor and outdoor environments, provided appropriate waterproofing and heat dissipation methods are implemented.

If you encounter any issues with the DIP LED Chips, please refer to the product datasheet for troubleshooting guidelines. Common issues include dimming, flickering, or failure to light, often caused by incorrect wiring, overcurrent, or environmental factors.

We recommend using compatible drivers and power supplies to ensure stable operation. Regular inspection and maintenance can help identify potential problems early and prolong the service life of the LED chips.

Our technical support team is available to assist with any questions regarding installation, operation, or performance optimization of the DIP LED Chips. For detailed technical documentation, please consult the product manual or our online resources.

Packing and Shipping:

Product Packaging: The DIP LED chips are carefully packaged in anti-static trays or tubes to prevent any damage during handling and transport. Each package is sealed with protective covers to ensure the chips remain clean and free from dust. Packaging includes clear labeling with product specifications, quantity, and batch number for easy identification and inventory management.

Shipping: DIP LED chips are shipped using reliable courier services with options for standard or expedited delivery. The packages are cushioned and securely boxed to withstand shocks and vibrations during transit. We provide tracking information for all shipments to ensure timely and safe delivery. Special handling instructions can be accommodated upon request to meet specific customer requirements.

FAQ:

Q1: What is the model number of the DIP LED CHIPS?

A1: The model number of the DIP LED CHIPS is GH-DIP5MMSD-5DX.

Q2: Where are the DIP LED CHIPS manufactured?

A2: The DIP LED CHIPS are manufactured in China.

Q3: What certifications do the DIP LED CHIPS have?

A3: The DIP LED CHIPS are certified with CE, ROHS, LM-79, and LM-80.

Q4: What is the minimum order quantity for DIP LED CHIPS?

A4: The minimum order quantity for DIP LED CHIPS is 6000 pieces.

Q5: What is the typical delivery time for an order of DIP LED CHIPS?

A5: The typical delivery time for DIP LED CHIPS is between 3 to 7 days.
