Wavelength 525nm Green 234 led diode featuring Forward Voltage 1.8V to 3.3V designed for electronic lighting and indicator device

Product Description:

The DIP LED Chips are an essential component in modern lighting and display technologies, offering exceptional performance and reliability. These chips are designed with precision and engineered to meet the rigorous demands of various applications, making them a top choice for manufacturers and hobbyists alike. Among the most popular variants are the red DIP LED, RGB straw hat DIP LED, and the 5MM DIP LED CHIPS, each known for their distinct features and superior quality.

One of the standout characteristics of these DIP LED chips is their compact chip size of 0.5mm x 0.5mm. This small footprint enables designers to create highly efficient and space-saving lighting solutions without compromising on brightness or clarity. The miniaturized chip size also facilitates seamless integration into intricate circuit designs, making these LEDs ideal for applications ranging from indicator lights to complex display panels.

The viewing angle of the DIP LED chips is set at 60°, which ensures a focused and concentrated light output. This specific viewing angle is particularly advantageous in applications where precise light direction is necessary, such as in signaling devices, automotive lighting, and decorative lighting installations. The 60° beam angle helps to minimize light dispersion, enhancing the visibility and effectiveness of the LED’s illumination.

Durability and longevity are critical factors in LED technology, and these DIP LED chips excel in both areas. With an impressive lifespan of 50,000 hours, they provide long-lasting performance that reduces maintenance and replacement costs. Whether used in commercial signage, traffic lights, or architectural lighting, the extended operational life guarantees dependable performance over many years, even in demanding environments.

Another remarkable feature of these DIP LED chips is their wide operating temperature range, from -40°C to +85°C. This broad thermal tolerance makes them suitable for use in extreme conditions, including outdoor installations and industrial settings where temperature fluctuations are common. Additionally, their storage temperature range of -40°C to +100°C ensures that the LEDs maintain their integrity and functionality during transportation and storage, preventing damage caused by harsh environmental factors.

The red DIP LED variant is highly regarded for its vibrant and intense red light output. It is widely used in applications requiring clear and visible red illumination, such as brake lights, status indicators, and decorative lighting. The red DIP LED chips deliver consistent color quality and brightness, making them a reliable choice for both indoor and outdoor use.

The RGB straw hat DIP LED is another innovative product in this lineup, known for its versatility and dynamic color capabilities. This type of DIP LED chip integrates red, green, and blue LEDs within a single package, allowing for the creation of a wide spectrum of colors through color mixing. The RGB straw hat DIP LED is extensively used in full-color displays, mood lighting, and entertainment lighting systems, offering users the ability to customize and control lighting effects with ease.

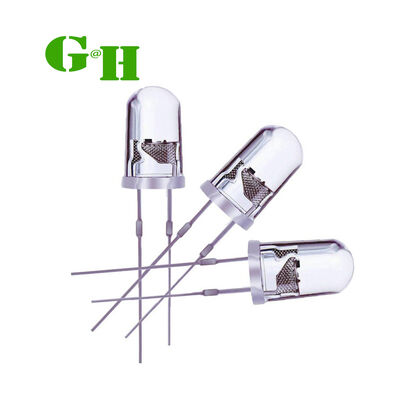

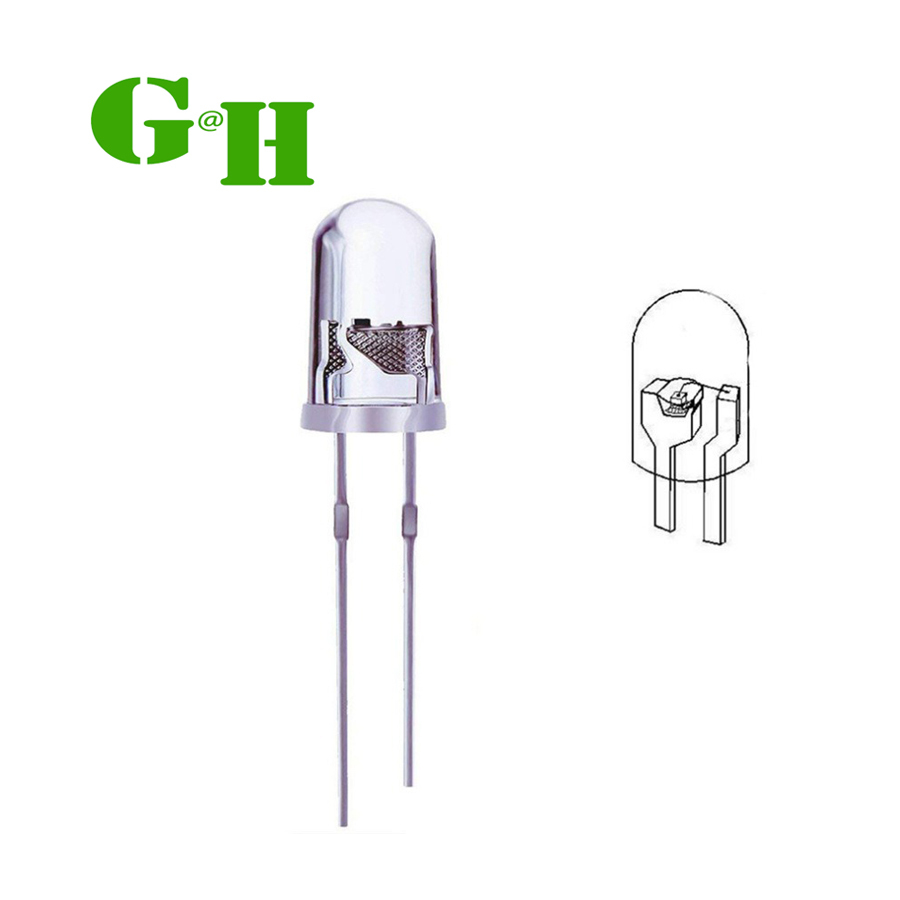

Lastly, the 5MM DIP LED CHIPS are notable for their standard size and widespread application. Their robust design and ease of installation make them ideal for prototyping and mass production alike. These 5MM DIP LED chips are used in a variety of products, from consumer electronics to industrial indicators, due to their proven reliability and performance.

In summary, these DIP LED chips combine compact design, focused light output, long lifespan, and excellent temperature tolerance to provide a superior lighting solution. Whether you require the bright and vivid red DIP LED, the versatile RGB straw hat DIP LED, or the dependable 5MM DIP LED CHIPS, these products deliver consistent quality and performance across a broad range of applications. Their engineering excellence and durability make them a smart investment for anyone seeking efficient and reliable LED technology.

Features:

• Product Name: DIP LED CHIPS
• Chip Material: Gallium Arsenide (GaAs)
• Wavelength Options:
  • 620nm (Red)
  • 525nm (Green)
  • 470nm (Blue)
• Package Type: DIP (Dual In-line Package)
• Viewing Angle: 60°
• Lifespan: 50,000 Hours
• Features include UV flat top dip led chip technology for enhanced performance.
• Available in RGB straw hat dip led configuration for vibrant color mixing.
• Energy-efficient 0.06w dip led diode design.

Technical Parameters:

Applications:

The DIP LED CHIPS, model number GH-DIP5MMSD-5DX, originating from China, represent a versatile and high-quality solution for various lighting applications. Certified with CE, ROHS, LM-79, and LM-80 standards, these LED chips ensure reliability, safety, and excellent performance. With a chip size of 0.5mm x 0.5mm and available emission colors including Red (620nm), Green (525nm), Blue (470nm), Yellow, and White, these DIP (Dual In-line Package) LEDs are ideal for numerous application occasions and scenarios.

One of the primary application occasions for the DIP LED CHIPS is in indicator lighting for consumer electronics and industrial equipment. Their through-hole mounting type makes them easy to install on various circuit boards, ensuring stable and long-lasting operation. The availability of multiple colors allows for versatile use in status indicators, display panels, and signal lights. Additionally, their compact chip size and robust packaging, including the 8mm Straw Hat LED chip and oval DIP LED chip variants, make them suitable for compact and intricate designs.

The DIP LED CHIPS are also widely used in decorative lighting and signage. The vibrant emission colors are perfect for creating eye-catching displays, whether indoors or outdoors. The UV square DIP LED chip variant is particularly useful in applications requiring ultraviolet light, such as counterfeit detection, sterilization, or artistic lighting effects. Furthermore, the chips’ excellent color consistency and brightness make them ideal for LED strips, light boxes, and architectural lighting.

In the automotive and transportation industries, these LEDs are employed in dashboard indicators, signal lights, and interior illumination. Their durability and compliance with international certifications ensure they meet stringent quality and safety requirements. The packaging details, utilizing CANTOR PACKING, facilitate efficient handling and transportation, while the supply ability of 9,000,000 pieces each week guarantees timely delivery for large-scale production needs.

With a minimum order quantity of 6000 pieces and a competitive price range of $0.001 to $0.008 per unit, DIP LED CHIPS provide an economical solution for manufacturers and designers. Payment terms such as T/T, LC, and DP offer flexibility, and the fast delivery time of 3-7 days ensures projects stay on schedule. Overall, the DIP LED CHIPS GH-DIP5MMSD-5DX series is an excellent choice for applications ranging from consumer electronics and automotive to decorative and specialized UV lighting scenarios, supported by reliable certifications and proven performance.

Customization:

Our DIP LED CHIPS product, model number GH-DIP5MMSD-5DX, offers comprehensive product customization services tailored to meet your specific needs. Manufactured in CHINA, these 5mm round dip led components are certified with CE, ROHS, LM-79, and LM-80, ensuring high quality and reliability.

We provide a wide range of emission colors including Red, Green, Blue, Yellow, and White, with a viewing angle of 60° and a lifespan of up to 50,000 hours. The forward current is rated at 20mA, and the mounting type is through-hole, making it suitable for various applications. Our product range also features options such as the popular 3MM DIP RED CHIPS LIGHT and the 8mm Straw Hat led chip for versatile lighting solutions.

With a minimum order quantity of 6000PCS and a competitive price range of 0.001-0.008 per unit, we ensure cost-effective purchasing. Packaging is handled with CANTOR PACKING to guarantee safe delivery. Our supply ability reaches up to 9,000,000PCS each week, with a delivery time of 3-7 days.

Payment terms are flexible, including T/T, LC, and DP to accommodate different customer preferences. Choose DIP LED CHIPS for reliable, customizable, and high-performance LED chip solutions that fit your exact requirements.

Support and Services:

Our DIP LED Chips are designed to provide reliable and high-performance lighting solutions for various applications. We offer comprehensive technical support to assist you with product selection, installation, and troubleshooting to ensure optimal operation and longevity of the LEDs.

Our services include detailed datasheets, application notes, and customization options to meet your specific requirements. We also provide guidance on proper handling, soldering techniques, and thermal management to maximize efficiency and prevent damage.

For any technical inquiries or assistance, our expert support team is available to help you with product compatibility, circuit design, and performance optimization. We are committed to delivering prompt and effective solutions to enhance your experience with our DIP LED Chips.

Additionally, we offer warranty services and replacement policies to ensure customer satisfaction and confidence in our products. Our goal is to support your projects from concept through deployment with reliable and high-quality LED components.

Packing and Shipping:

Product Packaging:

The DIP LED Chips are carefully packaged to ensure maximum protection during transit. Each chip is individually placed in anti-static trays or tubes to prevent damage from electrostatic discharge. The trays or tubes are then securely packed into sturdy cardboard boxes with cushioning materials to avoid any physical impact. All packaging materials are designed to maintain the integrity and quality of the LED chips until they reach the customer.

Shipping:

We offer reliable shipping options worldwide to deliver DIP LED Chips promptly and safely. Orders are processed within 1-2 business days after payment confirmation. Shipping methods include standard postal services, express courier services, and freight shipping for bulk orders. Tracking information is provided for all shipments to ensure transparency and allow customers to monitor their orders in real time. Special care is taken to comply with international shipping regulations for electronic components.

FAQ:

Q1: What is the model number of the DIP LED CHIPS?

A1: The model number of the DIP LED CHIPS is GH-DIP5MMSD-5DX.

Q2: Where are the DIP LED CHIPS manufactured?

A2: The DIP LED CHIPS are manufactured in China.

Q3: What certifications do the DIP LED CHIPS have?

A3: The DIP LED CHIPS are certified with CE, ROHS, LM-79, and LM-80.

Q4: What is the minimum order quantity for DIP LED CHIPS?

A4: The minimum order quantity for DIP LED CHIPS is 6000 pieces.

Q5: What are the payment terms and delivery time for DIP LED CHIPS?

A5: Payment terms accepted are T/T, L/C, and D/P. The delivery time is typically between 3 to 7 days.
