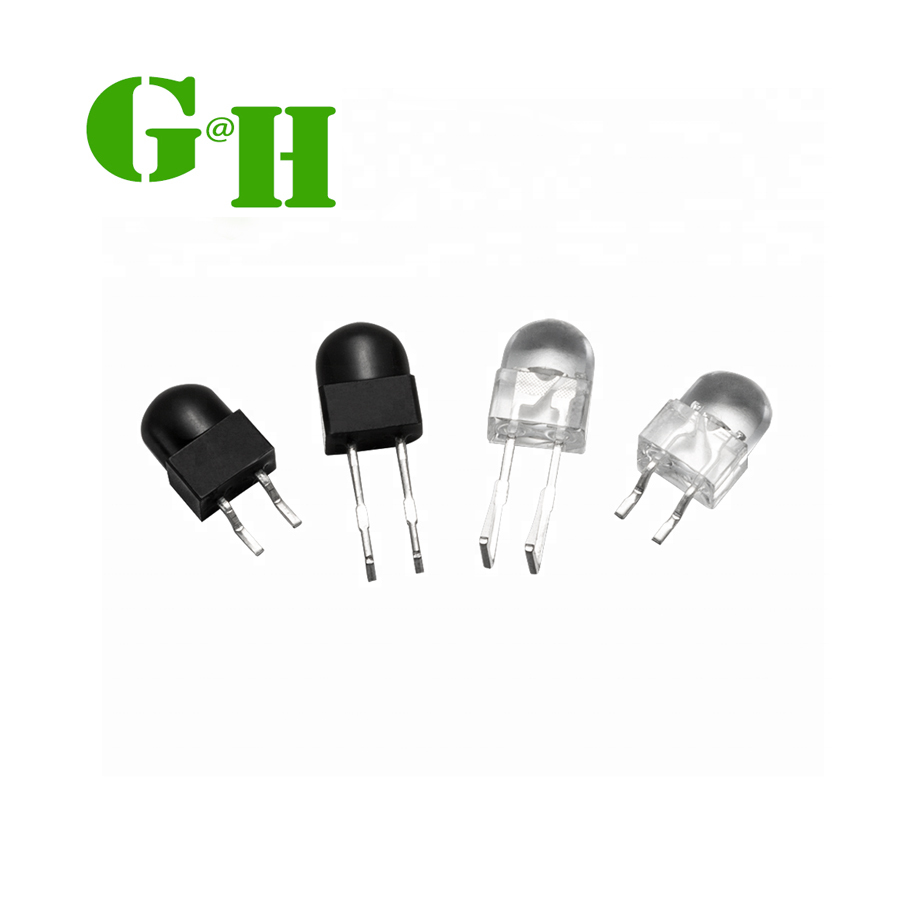

40°C To 100°C Oval Dip Led Chip With Lifespan 50 Providing Stable Performance For Lighting And Electronic Applications

Product Description:

The DIP LED Chips are a versatile and reliable lighting solution designed to meet a wide range of applications in electronic displays, indicators, and decorative lighting. These chips are available in three vibrant colors with specific wavelengths: 620nm for red, 525nm for green, and 470nm for blue, allowing for vivid and distinct color output. The color diffused DIP LED chip technology ensures uniform light diffusion and high visibility, making them ideal for use in various indoor and outdoor environments.

Encased in a sturdy Dual In-line Package (DIP), these LEDs are known for their durability and ease of installation. The DIP package is a classic and widely used format that provides excellent mechanical stability and protection to the semiconductor elements inside. This makes the DIP LED Chips suitable for applications where robust performance is essential, such as in industrial equipment, automotive lighting, and consumer electronics.

One of the standout features of these DIP LED Chips is their excellent electrical characteristics. They support a reverse voltage of up to 5V, which enhances their reliability by protecting the internal components from potential damage caused by reverse polarity or voltage spikes. The forward voltage range varies between 1.8V and 3.3V depending on the color, with red LEDs typically operating at the lower end of this spectrum, while blue LEDs are at the higher end. This efficient voltage range contributes to lower power consumption and heat generation, improving the overall energy efficiency of the devices they are integrated into.

In addition to electrical resilience, these LED chips are designed to operate in a wide temperature range from -40°C to +85°C. This broad operating temperature range ensures that the LEDs perform consistently and reliably in extreme environmental conditions, whether in freezing outdoor temperatures or high-heat industrial settings. This makes the DIP LED Chips a dependable choice for applications requiring long-term durability and stable performance.

The 3MM DIP RED CHIPS LIGHT are particularly notable for their bright and clear red illumination, which is perfect for status indicators, traffic signals, and other signaling applications. Their 3mm size strikes an ideal balance between brightness and compactness, making them easy to incorporate into various circuit designs without compromising on light output. Additionally, the UV flat top DIP LED chip variant offers enhanced light dispersion and a smooth top surface that minimizes glare, making it suitable for applications demanding precise and uniform lighting.

Overall, the DIP LED Chips combine vibrant color options, robust packaging, and excellent electrical and thermal performance. Whether you are looking for a reliable color diffused DIP LED chip for your next project or need the specialized features of the 3MM DIP RED CHIPS LIGHT or UV flat top DIP LED chip, these products offer an outstanding solution. Their proven performance, long operational life, and adaptability make them a preferred choice among engineers, designers, and manufacturers worldwide.

Features:

• Product Name: DIP LED CHIPS
• Reverse Voltage: 5V
• Operating Temperature: -40°C to +85°C
• Forward Voltage: 1.8V - 3.3V
• Mounting Type: Through-hole
• Forward Current: 20mA
• Includes DIP 8MM RGB LED CHIPS for versatile color applications
• Features white starw hat 5MM 3MM LED for enhanced brightness and clarity
• Available with 3MM DIP RED CHIPS LIGHT for focused red lighting needs

Technical Parameters:

Applications:

The DIP LED CHIPS, model number GH-DIP5MMSD-5DX, are high-quality lighting components originating from China, designed to meet a wide range of application occasions and scenarios. These LEDs come in various sizes including 3MM, 5mm, 8mm, and 10mm oval DIP LED formats, making them versatile and suitable for numerous lighting projects. Their dual in-line package (DIP) design ensures easy integration into circuit boards and electronic devices, providing reliable and efficient illumination.

One of the primary application scenarios for the DIP LED CHIPS is in indicator lights for consumer electronics, appliances, and machinery. Thanks to their high luminous intensity of 1000 Mcd and a lifespan of up to 50,000 hours, these LEDs offer bright and long-lasting performance. The 3MM DIP RED CHIPS LIGHT variant, in particular, is widely used for status indicators, signal lights, and display panels due to its vivid red color and excellent visibility.

In addition, these LEDs are highly suitable for architectural and decorative lighting projects. The availability of 3MM, 5mm, 8mm, and 10mm oval DIP LED sizes allows designers to create customized lighting effects and patterns. Their robust storage temperature range of -40°C to +100°C ensures stable operation in harsh environments, making them ideal for outdoor signage, automotive lighting, and industrial control panels.

Manufactured under strict quality controls and certified by CE, ROHS, LM-79, and LM-80 standards, the GH-DIP5MMSD-5DX DIP LED CHIPS guarantee safety and environmental compliance. With a reverse voltage rating of 5V, these LEDs are compatible with low-voltage circuits, further broadening their applicability in electronic devices and lighting systems.

The product is packaged using CANTOR PACKING to ensure safe delivery and ease of handling. With a minimum order quantity of 6000PCS and a supply ability of 9,000,000PCS each week, these LEDs are well-suited for mass production and large-scale projects. Pricing ranges from 0.001 to 0.008 per piece, making them cost-effective for manufacturers and designers.

The delivery time is efficient, with shipments typically dispatched within 3 to 7 days. Payment terms like T/T, LC, and DP provide flexible options for buyers worldwide. Whether for consumer electronics, automotive lighting, architectural designs, or industrial applications, the DIP LED CHIPS offer a reliable, durable, and bright solution to meet diverse lighting needs.

Customization:

Our DIP LED CHIPS product, model number GH-DIP5MMSD-5DX, offers exceptional customization services to meet your specific needs. Manufactured in China, these DIP 8MM RGB LED CHPS are designed with high-quality Gallium Arsenide (GaAs) chip material, ensuring reliable performance with a forward voltage range of 1.8V to 3.3V and a forward current of 20mA.

We provide customization for various package types, including the popular 10mm round dip led, tailored to your application requirements. Our product complies with CE, ROHS, LM-79, and LM-80 certifications, guaranteeing safety and efficiency. With an operating temperature range from -40°C to +85°C, these 234 led diode components are suitable for diverse environments.

The minimum order quantity is 6000PCS, and we offer competitive pricing between $0.001 and $0.008 per piece. Packaging is handled with CANTOR PACKING to ensure secure delivery. We maintain a strong supply ability of 9,000,000PCS each week, with delivery times ranging from 3 to 7 days, supported by flexible payment terms including T/T and L/C.DP.

Contact us today to customize your DIP LED CHIPS and benefit from our professional services tailored to your volume and specification needs.

Support and Services:

Our DIP LED Chips are designed for high performance and long-lasting reliability. For technical support, please ensure that you have the product model number and batch code available when seeking assistance. Our support team can provide guidance on installation, usage, and troubleshooting to ensure optimal operation of your DIP LED Chips.

We offer comprehensive services including product customization, quality assurance testing, and replacement policies for defective units. Our technical specialists are available to help with circuit design recommendations, heat management solutions, and compatibility with your existing systems.

For warranty claims, please refer to the warranty terms provided with your purchase. We are committed to delivering excellent customer service and technical support to help you achieve the best results with our DIP LED Chips.

Packing and Shipping:

Product Packaging:

The DIP LED Chips are carefully packaged in anti-static trays or tubes to prevent any damage during handling and transit. Each package is labeled with product specifications, quantity, and batch number to ensure easy identification and traceability. Protective cushioning materials are used to safeguard the LEDs from mechanical shock and vibration.

Shipping:

All DIP LED Chips orders are securely packed in sturdy cartons to withstand shipping conditions. We offer multiple shipping options including standard ground, expedited, and international freight to meet customer requirements. Each shipment is accompanied by a detailed packing list and certificate of conformity to guarantee product quality and authenticity upon delivery.

FAQ:

Q1: What is the model number of the DIP LED CHIPS product?
A1: The model number of the DIP LED CHIPS product is GH-DIP5MMSD-5DX.

Q2: Where are the DIP LED CHIPS manufactured?
A2: The DIP LED CHIPS are manufactured in China.

Q3: What certifications do the DIP LED CHIPS have?
A3: The DIP LED CHIPS are certified with CE, ROHS, LM-79, and LM-80.

Q4: What is the minimum order quantity and price range for DIP LED CHIPS?
A4: The minimum order quantity is 6000 pieces, and the price range is between $0.001 and $0.008 per piece.

Q5: What are the packaging details and delivery time for DIP LED CHIPS?
A5: The DIP LED CHIPS are packaged using CANTOR PACKING, and the delivery time is between 3 to 7 days.

Q6: What payment terms are accepted for purchasing DIP LED CHIPS?
A6: Accepted payment terms include T/T, LC, and DP.

Q7: What is the supply capacity of the DIP LED CHIPS?
A7: The supply ability is 9,000,000 pieces each week.
