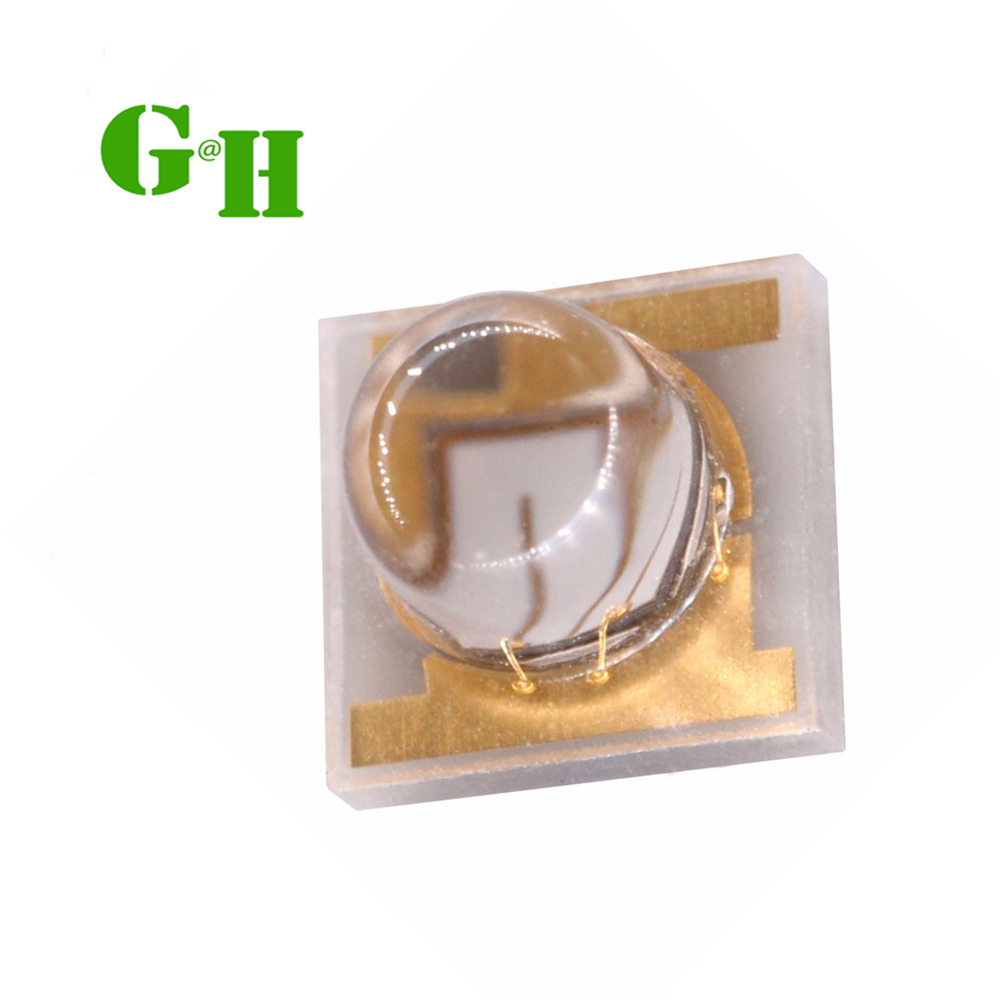

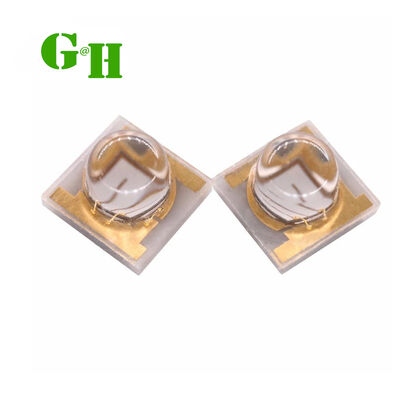

Chipsize 1.6mm X 0.8mm 940nm 3w IR LED Infrared Emitter Suitable for Night Vision Security Systems and Remote Controls

Product Description:

The IR LED Chips are advanced semiconductor devices designed to emit infrared light efficiently and reliably. These chips come in a convenient SMD (Surface-Mount Device) package type, making them ideal for modern electronic assembly and integration. Their compact design allows for easy mounting on various circuit boards, providing excellent versatility for a wide range of applications including security systems, night vision equipment, and remote sensing technologies.

One of the standout features of these IR LED Chips is their impressive lifespan, rated at an extraordinary 100,000 hours. This extended operational life ensures long-term reliability and minimal maintenance, making them a cost-effective solution for both commercial and industrial uses. Whether deployed in continuous operation or intermittent use, these LEDs maintain consistent performance over time, reducing the need for frequent replacements.

The chips emit infrared light at a wavelength of 940nm, which is a popular choice for many infrared applications. The 940nm 20w IR LED specification highlights their high power output, enabling strong and efficient infrared illumination. This wavelength is particularly effective for applications requiring discreet illumination, as it is less visible to the human eye compared to lower-wavelength infrared LEDs, thus enhancing stealth and reducing interference in sensitive environments.

With a wide viewing angle of 120 degrees, these IR LED Chips provide broad coverage, making them suitable for illuminating large areas evenly. This wide-angle emission characteristic ensures that infrared light disperses over a greater area, improving the effectiveness of detection and imaging systems. The broad viewing angle also allows for more flexible design configurations, as fewer LEDs may be required to cover a specific field of view.

In terms of environmental resilience, these IR LED Chips are capable of operating and being stored within a temperature range of -40°C to 100°C. This wide storage temperature range ensures that the devices remain stable and functional even in extreme environmental conditions, from cold outdoor settings to high-temperature industrial environments. The robust thermal tolerance enhances the reliability and durability of these LEDs in various applications, including automotive, outdoor security, and industrial automation.

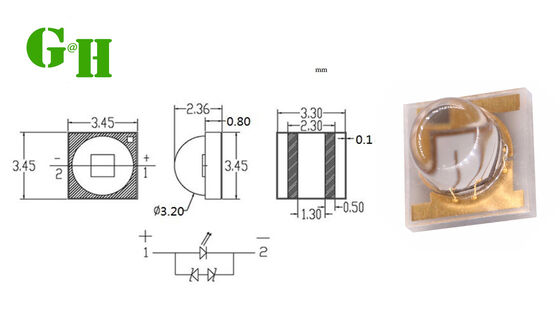

For engineers and designers seeking detailed technical information, the Infrared IR power led datasheet provides comprehensive data on electrical characteristics, optical properties, and mechanical dimensions. This datasheet is an essential resource for integrating the IR LED Chips into custom designs, ensuring optimal performance and compatibility with existing systems. The datasheet also includes guidelines for proper handling and usage to maximize the lifespan and efficiency of the LEDs.

Overall, the IR LED Chips offer a combination of high power, long lifespan, wide viewing angle, and robust temperature tolerance, making them a superior choice for infrared illumination needs. Whether used in security cameras, proximity sensors, or medical devices, these infrared LEDs deliver consistent and reliable performance. Their SMD package type further simplifies installation and supports high-density circuit layouts, advancing the capabilities of modern infrared applications.

For those interested in detailed specifications and application notes, the Infrared IR power led datasheet is an invaluable tool that outlines all critical performance metrics. The 940nm 20w IR LED specification ensures powerful infrared light output with minimal power consumption, providing an efficient solution for diverse infrared technology demands.

Technical Parameters:

Applications:

The IR LED Chips, model number GH-IR850SD-SDF524, are high-quality 0805 IR LED chips manufactured in China. These IR LED diodes operate at a wavelength of 850nm and feature a wide viewing angle of 120 degrees, making them ideal for a variety of applications requiring efficient infrared illumination. Certified with CE, Rohs, LM-80, and LM-79 standards, these chips ensure reliability and safety in diverse environments.

Due to their small SMD package type, the 850nm IR LED chips are perfect for compact and space-sensitive electronic devices. They are commonly used in remote controls, night vision equipment, security cameras, IR communication devices, and other consumer electronics that require infrared light emission. Their operating temperature range of -40°C to 100°C makes them suitable for both indoor and outdoor applications, ensuring stable performance even under harsh conditions.

IR LED diodes like the GH-IR850SD-SDF524 are also widely employed in industrial automation systems, where precise infrared sensing and detection are critical. Their fast response time and energy efficiency provide excellent performance in smart home devices, medical equipment, and automotive sensor systems. The 0805 IR LED chip’s versatility allows it to be integrated into wearable technology and IoT devices, expanding its use in modern technological solutions.

The product is available with a minimum order quantity of 1000pcs, making it suitable for both small-scale projects and large manufacturing runs. With a competitive price range of 0.003 to 0.008 USD per piece and a robust supply ability of 8,000,000 pieces each week, these 850nm IR LED chips ensure timely delivery and cost-effectiveness. Packaging is done via carton packing to guarantee safe shipment, with delivery times ranging from 3 to 7 days. Payment terms such as T/T, LC, and DP provide flexibility for international buyers.

In summary, the GH-IR850SD-SDF524 IR LED Chips stand out as reliable, efficient, and versatile components for any application requiring infrared light emission. Whether used in consumer electronics, security systems, industrial automation, or medical devices, these 0805 IR LED chips offer excellent performance, durability, and value.

Customization:

Our IR LED Chips product, model number GH-IR850SD-SDF524, is a high-quality ir led diode manufactured in CHINA. With certifications including CE, Rohs, LM-80, and lm-79, this 850NM 20w LED chip guarantees reliable performance and safety compliance.

We offer product customization services to meet your specific requirements, including optical power ranging from 30,000 to 42,000mw and a wavelength of 850nm, ideal for various infrared applications. The luminous intensity of 100mW/sr ensures bright and efficient light output, while the operating temperature range from -40°C to 85°C provides durability in diverse environments.

Our minimum order quantity is 1000pcs, with a competitive price range of 0.003 to 0.008 per piece. Products are securely packed using carton packing to ensure safe delivery. Delivery time is fast, typically within 3-7 days, supported by a supply ability of 8,000,000 PCS each week.

Payment terms are flexible, accepting T/T, LC, and DP. Whether you are looking for standard IR LED Chips or require specific customization like the 740nm ir led diode variant, we can accommodate your needs efficiently and professionally.

Support and Services:

Our IR LED Chips are designed to provide reliable and efficient infrared illumination for a wide range of applications including security cameras, remote controls, and night vision devices. For optimal performance, ensure proper heat dissipation by using an appropriate heat sink and maintaining operating temperatures within the specified range.

We recommend operating the IR LED Chips within the specified forward current and voltage limits to maximize lifespan and efficiency. Avoid exposing the chips to static discharge and handle them with proper ESD precautions.

For assembly, use standard soldering techniques with a recommended soldering temperature and duration to prevent damage. It is advised to refer to the datasheet for detailed mechanical and electrical specifications before integration.

In case of any issues with the IR LED Chips, verify the operating conditions and circuit design to ensure compatibility. Our technical support team is available to assist with troubleshooting and application guidance to help you achieve the best results with our products.

We also offer customization options and additional services including packaging solutions and performance testing to meet specific project requirements. Please consult our product catalog for more information on available variants and specifications.

Packing and Shipping:

Product Packaging: The IR LED chips are carefully packaged in anti-static trays or reels to prevent any damage during handling and transportation. Each package is sealed with moisture-proof materials to protect the LEDs from humidity and contamination. Clear labeling with product specifications, batch number, and date of manufacture is provided on each package for easy identification and quality control.

Shipping: The IR LED chips are shipped in sturdy, shock-resistant cartons to ensure safe delivery. We use reliable courier services that offer tracking and timely delivery options. For international shipments, all necessary customs documentation and compliance certificates are included. Temperature and humidity controls are maintained during transit when required to preserve product integrity.

FAQ:

Q1: What is the model number of the IR LED Chips?

A1: The model number of the IR LED Chips is GH-IR850SD-SDF524.

Q2: Where are the IR LED Chips manufactured?

A2: The IR LED Chips are manufactured in China.

Q3: What certifications do the IR LED Chips have?

A3: The IR LED Chips have CE, RoHS, LM-80, and LM-79 certifications.

Q4: What is the minimum order quantity and price range for the IR LED Chips?

A4: The minimum order quantity is 1000 pieces, with prices ranging from $0.003 to $0.008 per piece.

Q5: What are the packaging and delivery details for the IR LED Chips?

A5: The IR LED Chips are packed in cartons, and the delivery time is typically 3-7 days.

Q6: What payment terms are accepted for purchasing IR LED Chips?

A6: Accepted payment terms include T/T, LC, and DP.

Q7: What is the supply capacity of the IR LED Chips?

A7: The supply ability is 8,000,000 pieces each week.
