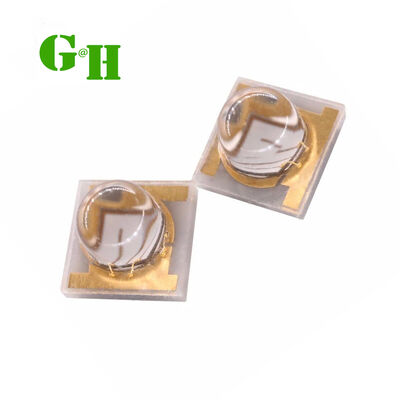

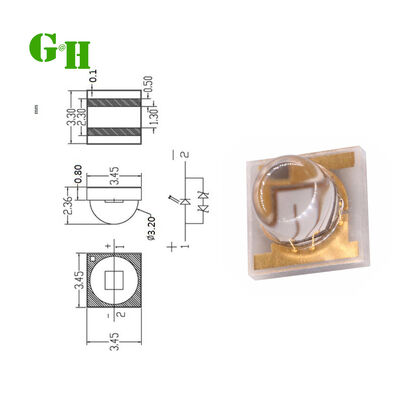

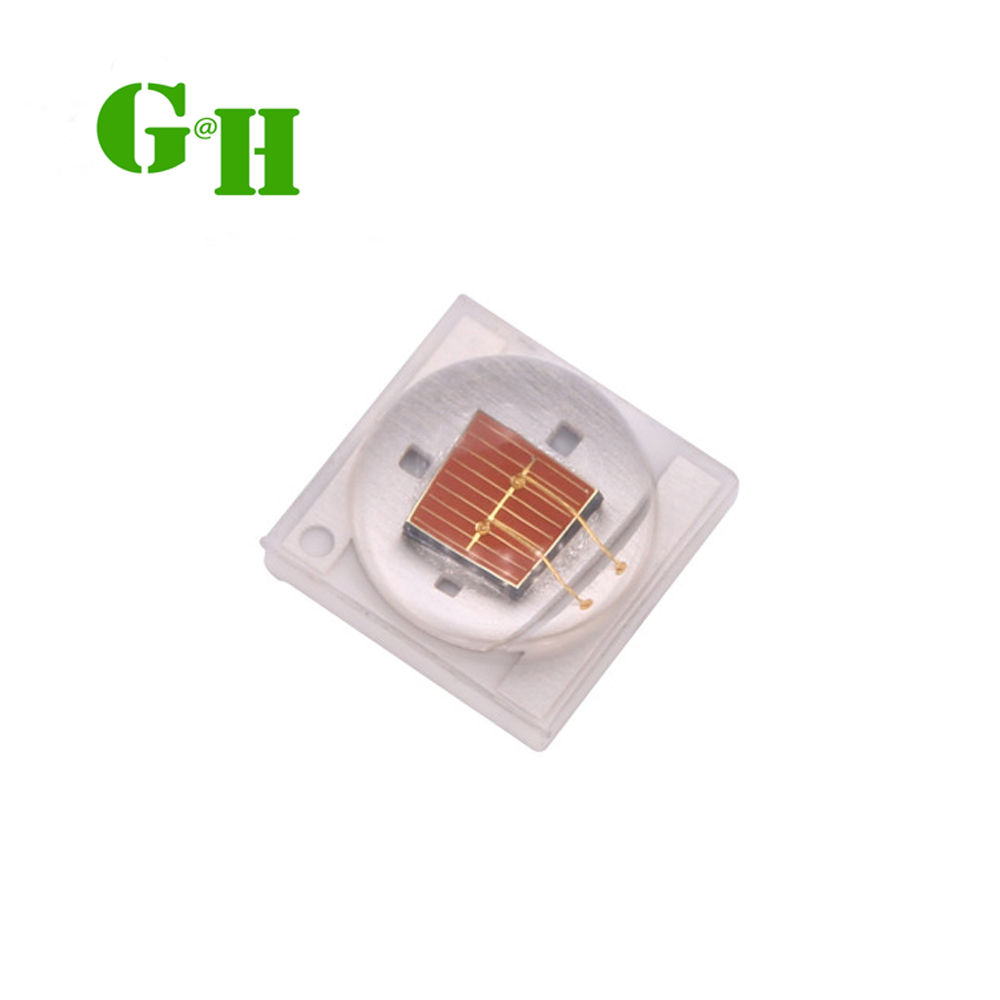

SMD 3535 IR LED featuring 100mW per steradian luminous intensity designed for machine vision security cameras and remote control devices

Product Description:

The IR LED Chips are advanced infrared lighting components designed to deliver exceptional performance and reliability for a wide range of applications. Engineered with cutting-edge technology, these IR LED chips provide a powerful optical output, making them an ideal choice for both industrial and consumer electronics that require efficient infrared illumination. With an impressive optical power range of 30,000 to 42,000 milliwatts, these chips ensure bright, consistent infrared light emission, suitable for night vision devices, security cameras, remote controls, and other IR-based sensing systems.

One of the standout features of these IR LED chips is their compact and versatile SMD (Surface-Mounted Device) package type. The SMD package allows for easy integration into various circuit boards and devices, offering excellent thermal management and durability. This packaging style also supports high-density mounting, making the IR LED chips particularly suitable for applications where space is limited but high performance is essential.

At the heart of these IR LED chips lies a robust 16S6P circuit configuration. This intricate circuit design consists of 16 series-connected sets, each containing six parallel LED chips, which collectively contribute to the high optical power output and enhanced reliability. The 16S6P circuit ensures optimal current distribution and heat dissipation, thereby extending the lifespan of the IR LED diode and maintaining stable performance even under strenuous operating conditions.

These IR LED chips operate primarily at the 850nm wavelength, which is a standard and highly effective wavelength for infrared illumination. The 850nm IR LED chips are widely used in various applications, including surveillance systems, biometric devices, and medical equipment, due to their ability to provide invisible yet powerful infrared light. The 3W IR chip light 3030 and 3535 models are particularly popular variants within this product line, known for their high efficiency and reliability in emitting infrared light at the 850nm wavelength.

Durability and product longevity are critical factors for any lighting component, and these IR LED chips excel in this regard. They come with a comprehensive warranty of 2 years or 10,000 hours of operation, whichever comes first. This warranty underscores the manufacturer’s confidence in the product’s quality and performance. Users can rely on these IR LED chips for long-term applications without worrying about premature failure or degradation of the infrared emission intensity.

In addition to their technical specifications, these IR LED chips are designed with user convenience and versatility in mind. The chips are compatible with a wide range of driving currents and voltages, making them adaptable to various electronic designs. Whether used in standalone IR LED diode modules or integrated into larger illumination systems, these chips provide consistent output and minimal maintenance requirements.

The IR LED chips also feature excellent thermal stability, which is crucial for maintaining performance during extended usage. Effective heat dissipation mechanisms integrated into the SMD package and the 16S6P circuit design help prevent overheating, thus preserving the integrity of the chip and ensuring continuous operation at peak efficiency.

Overall, the IR LED Chips represent a high-performance, reliable solution for infrared lighting needs. Their combination of high optical power, robust circuit design, efficient packaging, and long warranty period makes them a preferred choice for manufacturers and engineers looking to incorporate high-quality infrared illumination into their products. Whether you are seeking 3W IR chip light 3030 or 3535 variants, or require dependable 850nm IR LED chips, this product line offers versatility and excellence in infrared lighting technology.

Technical Parameters:

Applications:

The IR LED Chips, model GH-IR850SD-SDF524, are high-performance infrared light-emitting diodes designed to meet the demanding needs of various applications and scenarios. Originating from China and certified with CE, RoHS, LM-80, and LM-79 standards, these IR LED chips ensure reliable quality and safety for industrial and commercial use. With a minimum order quantity of 1000pcs and an attractive price range of 0.003 to 0.008 per unit, they offer an excellent balance of cost and performance.

One of the prominent application occasions for the IR LED Chips is in security and surveillance systems. The 1050nm IR LED Chips Light provides invisible infrared illumination, enabling night vision cameras to capture clear images in complete darkness without revealing the presence of the light source. Their 120-degree viewing angle and luminous intensity of 100mW/sr ensure wide and efficient coverage, making them ideal for outdoor security cameras, perimeter monitoring, and smart home security devices.

In addition to security, these 3535 IR LED chips are widely used in remote control and sensor technologies. Their operating temperature range from -40°C to 85°C allows them to function reliably in harsh environmental conditions, whether in automotive sensors, industrial automation, or consumer electronics. The low power consumption of 0.2W per chip helps maintain energy efficiency, critical for battery-powered devices and long-term installations.

Healthcare and medical equipment also benefit from the 0805 IR LED chip form factor, which is compact and easy to integrate into diagnostic devices, wearable health monitors, and therapeutic light systems. The precise circuit design (16S6P) of the GH-IR850SD-SDF524 model ensures stable and consistent performance across various uses.

Packaging details include secure carton packing, and delivery is prompt within 3-7 days, supported by flexible payment terms such as T/T, LC, and DP. The supply chain can handle up to 8,000,000 pcs each week, guaranteeing availability for both small and large-scale projects.

Overall, the IR LED Chips GH-IR850SD-SDF524 are versatile components perfect for applications requiring efficient infrared illumination, durability, and cost-effectiveness. Whether it is for advanced surveillance systems, sensor integration, or medical devices, these IR LED chips provide a dependable solution across multiple industries and scenarios.

Customization:

Our IR LED Chips product, model number GH-IR850SD-SDF524, is a high-quality 940nm 20w IR LED designed for advanced applications requiring efficient infrared illumination. Manufactured in China, these 3W high power LEDs come with comprehensive certifications including CE, RoHS, LM-80, and LM-79, ensuring reliability and performance.

Featuring a robust circuit configuration of 16S6P, the IR LED Chips operate within a temperature range of -40°C to 85°C and can be stored safely between -40°C to 100°C. The forward voltage ranges from 1.2V to 1.4V, supporting stable operation and longevity with a lifespan of up to 100,000 hours.

We offer customization services tailored to your needs, whether you require the 3w IR LED variant or the 3W high power LED datasheet with Epileds chip IR specifications. Our minimum order quantity is 1000pcs, with a competitive price range between $0.003 and $0.008 per piece.

Packaging is done carefully using carton packing to ensure safe delivery. With a supply ability of 8,000,000 pieces each week, we guarantee a delivery time of 3-7 days. Payment terms are flexible, including T/T, LC, and DP options to facilitate smooth transactions.

Choose our IR LED Chips for your infrared lighting solutions and benefit from customized product options that meet your specific technical and commercial requirements.

Support and Services:

Our IR LED Chips come with comprehensive technical support to ensure optimal performance and integration into your applications. We provide detailed datasheets, application notes, and design guidelines to assist you in selecting the right IR LED chip for your needs. Our engineering team is available to offer advice on circuit design, thermal management, and optical considerations.

In addition to technical support, we offer a range of services including custom packaging, binning by wavelength and radiant intensity, and reliability testing to meet your specific requirements. We also provide sample evaluation units to help you prototype and test before full-scale production.

For troubleshooting and maintenance, we deliver step-by-step guides and firmware updates where applicable. Our support team is committed to resolving any issues promptly to minimize downtime and ensure your project’s success.

Trust our expert support and tailored services to maximize the efficiency and longevity of your IR LED Chips in various applications such as remote controls, night vision, security systems, and medical devices.

Packing and Shipping:

Product Packaging: Each IR LED chip is carefully packaged in anti-static trays or tape and reel to prevent any damage during handling and transportation. The packaging ensures protection from dust, moisture, and electrostatic discharge. Customized packaging options are available upon request to suit specific customer requirements.

Shipping: We offer reliable and fast shipping services worldwide. Products are securely packed in sturdy cartons with adequate cushioning to avoid damage during transit. Shipping methods include air freight, sea freight, and courier services, depending on destination and urgency. Tracking information will be provided once the order is dispatched to ensure timely delivery and customer satisfaction.

FAQ:

Q1: What is the model number of the IR LED Chips?

A1: The model number of the IR LED Chips is GH-IR850SD-SDF524.

Q2: Where are the IR LED Chips manufactured?

A2: The IR LED Chips are manufactured in China.

Q3: What certifications do the IR LED Chips have?

A3: The IR LED Chips come with CE, RoHS, LM-80, and LM-79 certifications.

Q4: What is the minimum order quantity for the IR LED Chips?

A4: The minimum order quantity for the IR LED Chips is 1000 pieces.

Q5: What are the payment terms and delivery time for the IR LED Chips?

A5: The payment terms accepted are T/T, LC, and DP. The delivery time is typically 3-7 days.

Q6: How are the IR LED Chips packaged?

A6: The IR LED Chips are packaged in cartons for safe and secure shipping.

Q7: What is the price range for the IR LED Chips?

A7: The price for the IR LED Chips ranges from $0.003 to $0.008 per piece.

Q8: What is the supply capacity for the IR LED Chips?

A8: The supply ability is 8,000,000 pieces each week.
