0.3kg UV LED CHIPS Offering Paper Packing Type and 40-45 Percent Photoelectric Efficiency Designed for Industrial Lighting

Product Description:

The UV LED CHIPS are advanced lighting components designed to deliver high-performance ultraviolet light emission, making them ideal for a wide range of applications including sterilization, curing, and sensing. These chips are engineered with precision to ensure optimal efficiency and durability, featuring a wavelength range of 360-420nm which covers the critical UV spectrum required for many industrial and commercial uses.

One of the standout features of these UV LED chips is their lens material. Crafted from high-quality Quartz Glass, the QUARTZ GLASS LENS offers excellent transparency and resistance to heat and UV degradation. Quartz glass lenses are known for their superior optical clarity and durability, which ensures that the UV light emitted is not only powerful but also precisely focused. This makes the UV LED CHIPS highly reliable in applications where consistent and intense UV light output is essential.

The input current for these chips ranges between 500-700mA, with a maximum rating of 1A. This input current range allows for flexible operation, enabling users to optimize the light output according to their specific needs without compromising the chip’s longevity. Operating within this current range ensures stable performance, minimizes thermal stress, and maintains the integrity of the chip over extended periods of use.

In terms of efficiency, these UV LED chips exhibit an impressive photoelectric efficiency of 40-45%. This high photoelectric efficiency means that a significant portion of electrical energy is converted into ultraviolet light, making these chips energy-efficient and cost-effective for continuous use. The enhanced efficiency also contributes to lower heat generation and improved overall performance, which is critical in demanding environments.

These UV LED chips are part of a product lineup that includes the popular 1W 3030 3535 UV LED CHIP, which is widely recognized for its compact size and powerful UV output. The 1W 3030 3535 UV LED CHIP is designed for applications requiring reliable UV illumination with high intensity and stability. Its compact form factor makes it suitable for integration into various devices and systems where space is limited but performance cannot be compromised.

Additionally, while these chips mainly cover the 360-420nm wavelength range, they complement other UV LED products such as the 255nm UV LED chip light, which operates at a shorter UV wavelength for specialized applications like disinfection and germicidal purposes. Together, these products provide a comprehensive range of UV light solutions to meet diverse industry demands.

In summary, the UV LED CHIPS featuring Quartz Glass lenses, an input current range of 500-700mA (max 1A), and a wavelength range of 360-420nm deliver exceptional performance with photoelectric efficiency between 40-45%. Their robust construction and efficient design make them an excellent choice for applications requiring reliable and intense UV illumination. Whether used individually or as part of a broader UV lighting system including the 1W 3030 3535 UV LED CHIP or the 255nm UV LED chip light, these chips offer superior quality and efficiency for professional and industrial use.

Features:

• Product Name: UV LED CHIPS
• Lens Type: Quartz Glass Lens
• Voltage: 54-72V
• Forward Voltage: 3.0V to 6.0V
• Input Current: 500-700mA (Max = 1A)
• Input Voltage: 5-7V
• Features 365nm UV 4014 2835 SMD for efficient UV light emission
• UV 1 watt power LEDs providing high intensity and performance
• Includes 265nm UVC LED for germicidal and sterilization applications

Technical Parameters:

Applications:

The UV LED Chips from Uvc Leds, model GH-UVC3535SD-DFG04, are designed to cater to a wide range of product application occasions and scenarios, making them an ideal choice for industries requiring high quality UV LED lamps. With a wavelength range of 360-420nm and a peak emission at 390nm, these 2835 UVA SMD LEDs are perfectly suited for applications involving ultraviolet light in the UVA spectrum.

One common application scenario is in sterilization and disinfection devices. The UV 1watt power LEDs deliver efficient UV light that can effectively eliminate bacteria, viruses, and other pathogens on surfaces or in the air, making them highly valuable in medical equipment, water purification systems, and air sterilizers. Their robust photoelectric efficiency of 40-45% and reliable forward voltage range from 3.0V to 6.0V ensure consistent performance in critical environments.

Another important application is in curing processes. These UV LEDs are widely used in industries such as printing, adhesives, and coatings where rapid curing of UV-sensitive materials is required. Their high-quality output and stable current input of 100mA allow for precise control and efficient curing, enhancing production speed and quality.

The compact size and high output of the GH-UVC3535SD-DFG04 also make them suitable for integration into portable or handheld devices, including counterfeit detection tools, forensic analysis instruments, and fluorescence detection equipment. Their CE, RoHS, LM-79, and LM-80 certifications guarantee compliance with international safety and performance standards, further supporting their use in sensitive and regulated applications.

With a minimum order quantity of 60,000 pieces, competitive pricing between $0.03 and $0.08 per unit, and a rapid delivery time of 3-7 days, these UV LED chips are highly accessible for mass production needs. The packaging in carton boxes ensures safe transportation, while flexible payment terms such as T/T, DP, and LC facilitate smooth transactions. Additionally, the supply ability of up to 5,000,000 pieces per week supports large-scale manufacturing demands.

Overall, the Uvc Leds GH-UVC3535SD-DFG04 UV LED chips are ideal for a variety of occasions and scenarios including sterilization, curing, detection, and other UV-related applications where durability, high efficiency, and reliable performance are essential.

Customization:

Uvc Leds offers customized Product Customization Services for our UV LED CHIPS, model number GH-UVC3535SD-DFG04, proudly made in CHINA. Our uvc led smd led diodes are certified with CE, RoHS, LM-79, and LM-80, ensuring high quality and reliability for your applications.

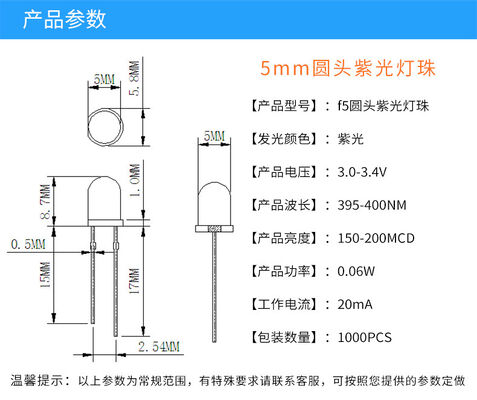

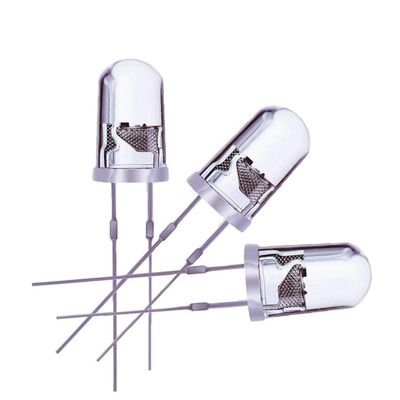

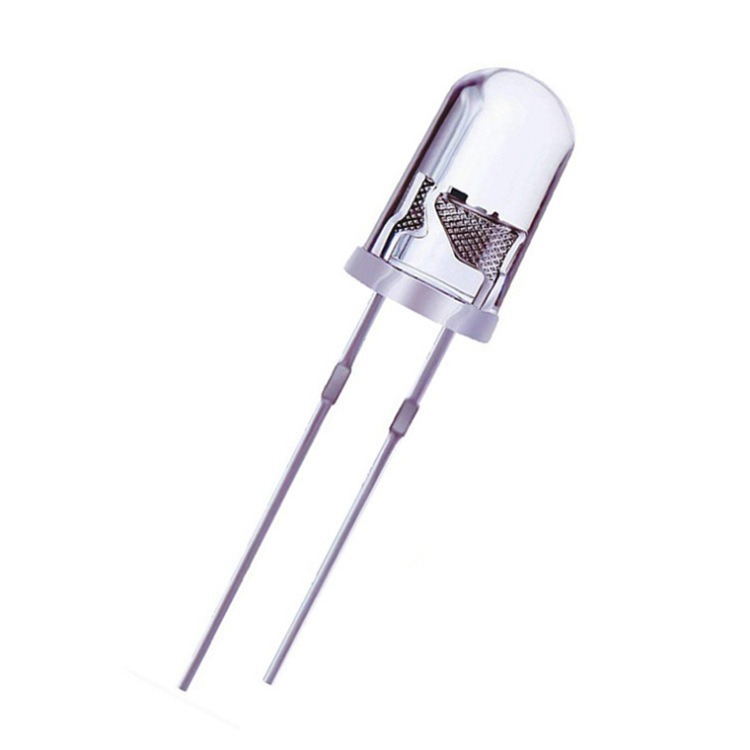

We specialize in 5MM UV LED light solutions, including innovative designs such as the 365nm 275nm two uvc in one led, perfect for various uses including disinfection, curing, medical, and counterfeit detection.

Our minimum order quantity is 60,000 pieces, with a competitive price range of $0.03 to $0.08 per unit. Each chip weighs 0.3kg and operates efficiently at 100mA current with a photoelectric efficiency of 40-45%.

Packaging is handled with care using carton packing and paper packing types to ensure safe delivery. We guarantee quick delivery within 3-7 days, supported by a strong supply ability of 5,000,000 pieces each week.

Payment terms include T/T, DP, and LC, providing flexible options to meet your business needs. Choose Uvc Leds for reliable and tailored UV LED chip solutions that meet your specific customization requirements.

Support and Services:

Our UV LED Chips come with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including datasheets and application notes, to assist in the proper integration and usage of our UV LED Chips.

Our experienced technical support team is available to help troubleshoot any issues, offer advice on circuit design, thermal management, and recommend suitable driving solutions. We also provide customization options to meet specific wavelength, power, and package requirements.

To maintain the highest quality standards, our UV LED Chips undergo rigorous testing and quality control processes. We offer guidance on handling, storage, and usage to maximize the lifespan and efficiency of the products.

For bulk orders, we provide dedicated support to streamline procurement and ensure timely delivery. We are committed to continuous improvement and welcome customer feedback to enhance our UV LED Chip offerings.

Packing and Shipping:

Product Packaging:

The UV LED Chips are carefully packaged in anti-static trays or reels to ensure protection from electrostatic discharge and physical damage during transit. Each package is sealed with moisture barrier bags along with desiccants to maintain optimal humidity levels and prevent moisture absorption. The outer packaging is made from sturdy cardboard boxes, clearly labeled with product specifications, quantity, batch number, and handling instructions to facilitate easy identification and inventory management.

Shipping:

We offer reliable shipping options to ensure timely delivery of UV LED Chips worldwide. Products are shipped via trusted carriers with tracking information provided to customers. For international shipments, all necessary customs documentation and compliance certifications are included to avoid delays. Special care is taken to handle shipments with fragile electronic components, and expedited shipping options are available upon request to meet urgent requirements.

FAQ:

Q1: What is the brand and model number of the UV LED chips?

A1: The UV LED chips are from the brand Uvc Leds, and the model number is GH-UVC3535SD-DFG04.

Q2: Where are these UV LED chips manufactured?

A2: These UV LED chips are manufactured in China.

Q3: What certifications do the UV LED chips have?

A3: The UV LED chips are certified with CE, RoHS, LM-79, and LM-80 standards.

Q4: What is the minimum order quantity and price range for these UV LED chips?

A4: The minimum order quantity is 60,000 pieces, and the price ranges from $0.03 to $0.08 per piece.

Q5: What are the packaging and delivery details for the UV LED chips?

A5: The chips are packed in cartons. Delivery time typically ranges from 3 to 7 days.

Q6: What payment terms are accepted for purchasing these UV LED chips?

A6: Accepted payment terms include T/T (Telegraphic Transfer), DP (Documents against Payment), and LC (Letter of Credit).

Q7: What is the supply capacity of the UV LED chips per week?

A7: The supply ability is 5,000,000 pieces each week.
