Backlighting 3528 smd led 630nm chip 3528 led chips red led components for electronic display backlighting and indicator

Product Description:

The 3528 LED Chips are a popular choice in the world of surface-mount device (SMD) lighting components due to their versatility, reliability, and efficiency. These high-quality LED 3528 SMD chips are designed to meet the demanding needs of various lighting applications, offering exceptional performance across a wide operating temperature range from -40°C to +85°C. This broad temperature tolerance ensures that the 3528 LED Chips can function reliably in both extreme cold and hot environments, making them suitable for a multitude of indoor and outdoor uses.

One of the standout features of the 3528 LED Chips is their availability in various colors, including white, red, green, blue, and yellow. This diverse color selection allows designers and engineers to utilize these LEDs in a range of applications such as backlighting, indicator lights, and decorative lighting. Whether you are looking to create subtle ambient lighting or vibrant, attention-grabbing indicators, the 3528 LED Chips provide the flexibility needed to achieve your desired lighting effect.

Constructed from high-grade semiconductor materials, these LEDs are made from either Gallium Phosphide (GaP) or Gallium Nitride (GaN), depending on the color and performance requirements. Gallium Phosphide is typically used for red, green, and yellow LEDs, offering excellent brightness and color stability. On the other hand, Gallium Nitride is used primarily for blue and white LEDs, providing high luminous efficiency and long operational life. This careful selection of materials ensures that the 3528 LED Chips deliver consistent performance, high brightness, and durability.

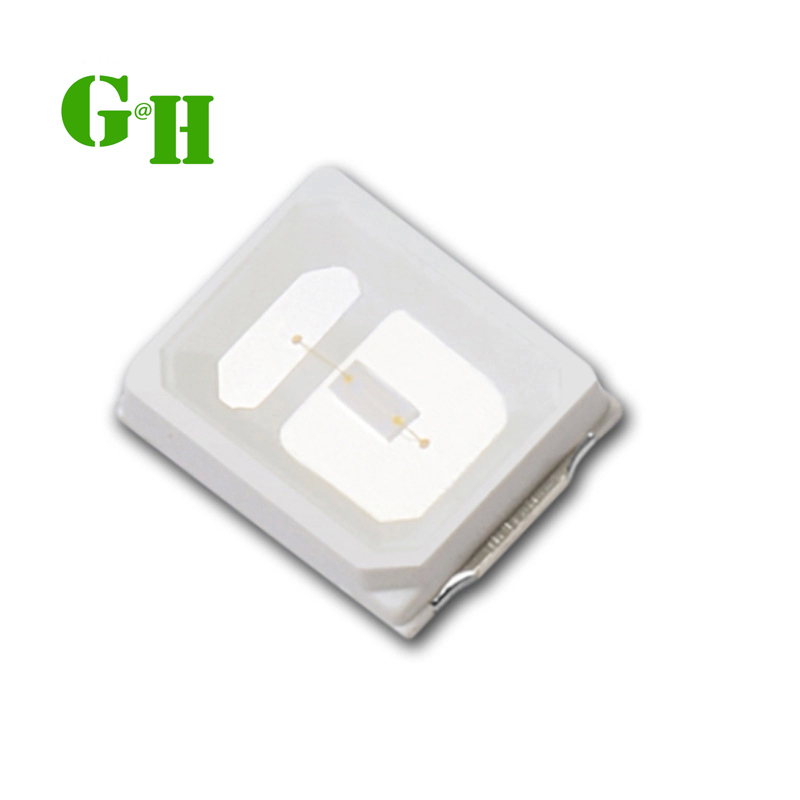

In terms of design, the 3528 LED Chip is compact and efficient, making it ideal for applications where space is limited. The 4 pin LED SMD 3528 configuration allows for easy integration into various circuit boards and lighting modules, providing secure electrical connections and stable operation. This design also facilitates straightforward assembly and replacement, which is beneficial in manufacturing and maintenance scenarios.

For engineers and designers seeking detailed technical specifications, the smd led 3528 datasheet white provides comprehensive information on the electrical and optical characteristics of these LEDs. This datasheet includes vital parameters such as forward voltage, luminous intensity, viewing angle, and power consumption, enabling precise design and optimization of lighting systems. Having access to such detailed documentation ensures that the 3528 LED Chips can be effectively incorporated into projects with confidence and accuracy.

The applications of the 3528 LED Chips are extensive. In backlighting, their small size and high brightness make them excellent for illuminating LCD screens, keypads, and switches. When used as indicator lights, these LEDs provide clear, reliable signaling in electronic devices, appliances, and automotive dashboards. Furthermore, their vibrant color options and energy efficiency make them ideal for decorative lighting purposes, including architectural lighting, holiday decorations, and signage.

Overall, the 3528 LED Chips represent a blend of advanced semiconductor technology, versatile color options, and robust operational capabilities. Whether you need a dependable light source for industrial equipment, consumer electronics, or creative lighting designs, these high quality LED 3528 SMD components offer an excellent solution. Their proven performance, combined with detailed technical support such as the smd led 3528 datasheet white, makes them a preferred choice for professionals and hobbyists alike.

In summary, the 3528 LED Chips stand out in the market due to their wide operating temperature range of -40°C to +85°C, availability in multiple colors including white, red, green, blue, and yellow, and their construction from premium materials like Gallium Phosphide (GaP) or Gallium Nitride (GaN). The 4 pin LED SMD 3528 design ensures easy integration and reliable operation, while the comprehensive datasheet supports informed application in backlighting, indicator lights, and decorative lighting projects. Choosing these high quality LED 3528 SMD chips guarantees durability, efficiency, and superior lighting performance across a broad spectrum of applications.

Features:

• Product Name: 3528 LED Chips
• Forward Current: 20mA
• Packaging Type: Tape And Reel
• Color Options: Available In Various Colors (White, Red, Green, Blue, Yellow)
• Lifespan: 50,000 Hours
• High quality Epistar SMD LED 3528 datasheet compliant
• Includes detailed SMD LED 3528 datasheet white specifications
• Supports 3528 RGB LED configurations for versatile lighting solutions

Technical Parameters:

Applications:

The Led 3528 Chips, model number GH-SMD3528SDDF0FF, are premium high quality LED 3528 SMD components manufactured in China. These versatile 3528 SMD LED chips are designed to meet rigorous standards, holding certifications such as EN62754, LM-79, and LM-80, ensuring reliability and performance in various lighting applications. With a compact chip size of 3.5mm x 2.8mm and a power consumption of just 0.06W per chip, these surface mounted device (SMD) LEDs offer efficient illumination with a forward current of 20mA, making them ideal for energy-conscious projects.

The 3528 RGB LED chips are widely used across numerous application occasions and scenarios. Their compact size and excellent luminous efficiency make them perfect for decorative lighting, including accent lighting in homes, commercial spaces, and retail displays. These chips are excellent for creating vibrant color displays in signage, backlighting for LCD screens, and architectural lighting where precise color control and brightness are required. Thanks to their tape and reel packaging type and carton packing, they are easy to handle and integrate into automated production lines, supporting large-scale manufacturing needs.

In addition, the Led 3528 Chips’ supply ability of 6,000,000 pieces each week and a minimum order quantity of 4,000 pieces make them suitable for both small and large volume projects. Their fast delivery time of 3-7 days and flexible payment terms including T/T, DP, and LC further enhance their appeal for manufacturers and distributors. Applications also extend to automotive lighting, LED strips, holiday lighting, and electronic devices that require reliable, long-lasting, and energy-efficient light sources.

Overall, these 3528 SMD LED chips combine quality, efficiency, and versatility. Whether you are designing dynamic color-changing LED displays with 3528 RGB LED chips or requiring consistent white light for general illumination, the Led 3528 Chips GH-SMD3528SDDF0FF provide an optimal solution. Their proven certifications and robust supply chain ensure that they meet the demands of modern lighting projects with confidence and ease.

Customization:

Introducing our premium product, the 3528 LED Chips, branded as Led 3528 Chips with the model number GH-SMD3528SDDF0FF. Manufactured in CHINA, these LED chips come with certifications including EN62754, LM-79, and LM-80, ensuring high quality and reliability.

Our 3528 LED Chips offer a luminous flux of 6-8 lumens per chip and feature a wide viewing angle of 120 degrees. They are available in various colors such as white, red, green, blue, and yellow, including options like smd 3528 led cool white 10000k and amber smd led 3528, catering to diverse lighting needs.

We provide detailed smd led 3528 datasheet white for technical reference to help you make informed decisions. The forward current is rated at 20mA, making these chips highly efficient for various applications.

The minimum order quantity is 4000PCS, with competitive pricing ranging from 0.001 to 0.003 per chip. Packaging is done via carton packing to ensure safe delivery, with a delivery time of 3-7 days. Our payment terms include T/T, DP, and LC, providing flexible options for our customers.

With a strong supply ability of 6,000,000PCS each week, we guarantee a steady and reliable supply of 3528 LED Chips to meet your production demands. Customize your lighting projects with our high-quality 3528 LED Chips and experience superior performance and versatility.

Support and Services:

For technical support and services related to 3528 LED Chips, we provide comprehensive assistance to ensure optimal performance and satisfaction. Our support includes guidance on installation, usage, and troubleshooting common issues. We offer detailed product documentation, including datasheets and application notes, to help you understand the specifications and best practices for utilizing 3528 LED Chips effectively.

Should you encounter any technical difficulties or require customization advice, our experienced support team is available to assist with tailored solutions. We also provide warranty services and replacement policies to guarantee product reliability and customer confidence.

In addition, we offer consultation for integrating 3528 LED Chips into various applications, including lighting design, electronics projects, and commercial products. Our goal is to ensure you receive the highest quality support throughout your product lifecycle.

Packing and Shipping:

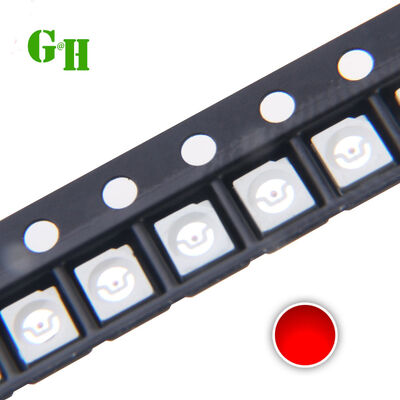

Our 3528 LED chips are carefully packaged to ensure they arrive in perfect condition. Each chip is securely placed on anti-static tape or reels to prevent damage and static discharge during transit. The packaging materials are chosen to provide cushioning and protection against moisture, dust, and mechanical impact.

For shipping, we use sturdy, well-padded boxes that are clearly labeled to handle with care. Depending on the order size, products are shipped via reliable courier services with tracking options available. We also offer custom packaging solutions to meet specific requirements, ensuring safe and efficient delivery worldwide.

FAQ:

Q1: What is the brand and model number of the 3528 LED chips?

A1: The brand name is Led 3528 Chips, and the model number is GH-SMD3528SDDF0FF.

Q2: Where are the 3528 LED chips manufactured?

A2: These LED chips are manufactured in China.

Q3: What certifications do the 3528 LED chips have?

A3: The chips are certified with EN62754, LM-79, and LM-80 standards.

Q4: What is the minimum order quantity and price range for the 3528 LED chips?

A4: The minimum order quantity is 4000 pieces, and the price ranges between $0.001 and $0.003 per chip.

Q5: What are the packaging details and delivery time for the 3528 LED chips?

A5: The chips are packed in cartons, and the delivery time is typically between 3 to 7 days.

Q6: What payment terms are accepted for purchasing the 3528 LED chips?

A6: Accepted payment terms include T/T (Telegraphic Transfer), DP (Documents against Payment), and LC (Letter of Credit).

Q7: What is the supply capacity of the 3528 LED chips?

A7: The supply ability is up to 6,000,000 pieces each week.
