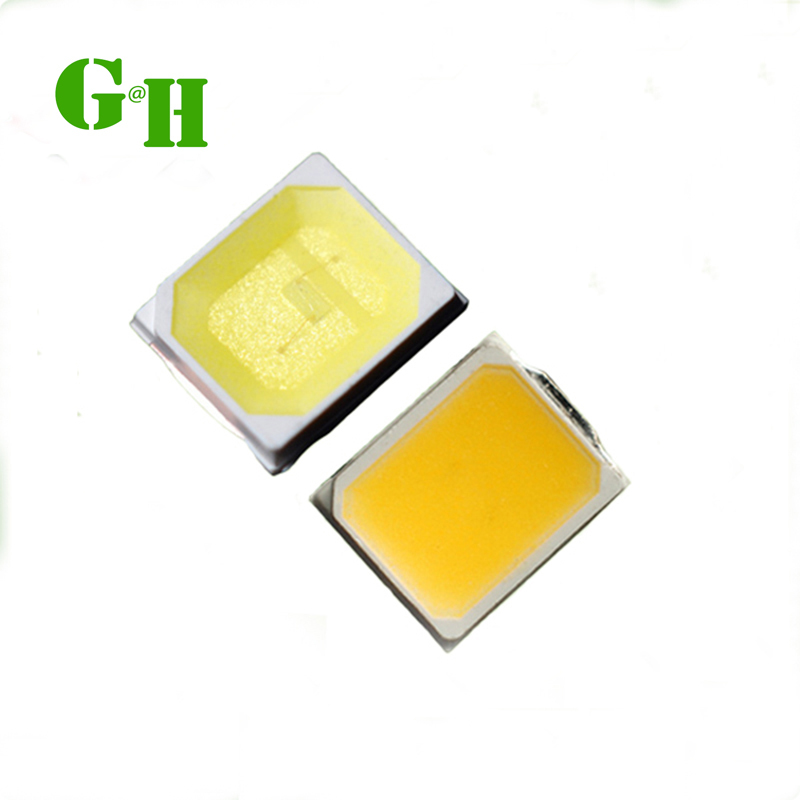

RoHS 2835 SMD LED Chip Red 6500K
High-performance 0.2W 2835 SMD LED chip delivering exceptional lumen efficiency up to 250LM/W with 6500K color temperature. Operating at 3V 60mA, this RoHS compliant LED offers long lifespan, high reliability, and superior performance for grow plant lighting applications.
Product Specifications
| Model No. |
GH-2835WW02-3V06D |
| Power |
0.2W |
| Voltage |
3.0-3.4V |
| Current |
60mA |
| Chip Brand |
SANAN |
| Chip Size |
10*26mil |
| Lifespan |
50,000 hours |
| Warranty |
3 years |
Product Overview

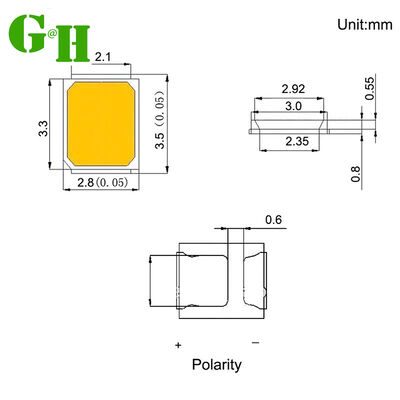

The SMD LED 2835 features a compact 2.8mm × 3.5mm package dimension. As a surface-mount device LED module, it utilizes advanced SMT technology for mounting LED chips on printed circuit boards. This self-contained LED device functions independently or integrates into compatible lighting systems.
Available Configurations
Our 2835 SMD LED series includes multiple options: 3V 60mA 0.2W, 3V 150mA 0.5W, 9V 30mA 0.3W, 9V 60mA 0.5W, 9V 100mA 1W, 18V 30mA 0.5W, and 18V 60mA 1W models to meet diverse application requirements.
Key Features
- Broad color temperature range from 2600K to 10000K
- Extended lifespan with high reliability
- Multiple voltage and die count configurations
- High efficacy and superior light quality
- Excellent color reproduction
- Low thermal resistance
- Environmentally friendly design
- RoHS compliant
Quality Materials
Brand Chip: GH LED SMD 2835 uses Epistar Sanan brand LED chips with high lumen, strong anti-static ability, and excellent consistency. All chips certified by LM-80.
99.99% Pure Gold Wire: JoBo brand gold wire provides high conductivity, good thermal conductivity, corrosion resistance, and chemical stability.
Glue: Dow Corning glue imported from the United States, stable in -65℃ to 338℃ environments with instant temperature resistance of 350℃.
Phosphors: Intematix phosphor delivers high brightness and zero light decay with excellent stability and consistency.
Copper Stick: Red copper bracket with excellent conductivity for reliable electrical connections.
Quality Testing
Each batch of Guanghaoming LED samples undergoes rigorous testing including high temperature, high humidity, cold and heat shock, and aging tests.
Color Reference
USA Energy Star IES LM-80 Color Reference Standard
Soldering Conditions
Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and second soldering process.
Usage Cautions
- Static Electricity: Use wrist band or anti-electrostatic gloves when handling LEDs. All devices and machinery must be properly grounded.
- Moisture Proof Package: Recommended for storage and handling.
- Storage: Before opening package, store at 30°C or less and 70%RH or less. Use within one year.
- After Opening Package: LEDs should be soldered within 24 hours after opening.
Applications
Company Information
Shenzhen Guanghaoming Technology Co., Ltd is a high-tech enterprise integrating SMD LEDs Chips Light and SMD Driver IC R&D, production, technical support and after-sales service. With over 100 employees including 62 technical staff, our 3,000 square meter workshop yields a yearly capacity of 2,000,000 Kpcs products. The company holds ISO9001:2000 quality system certification and all products are compliant with SGS, CE, RoHS, LM-79, LM-80, EN62471 standards.
Certifications
Packing & Shipping

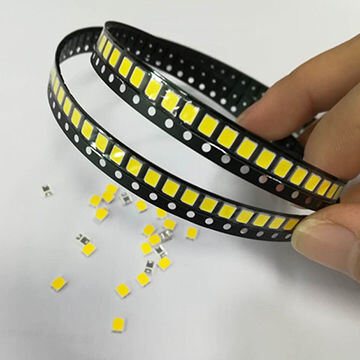

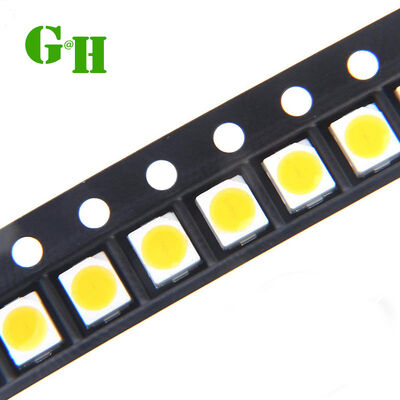

4000 pieces/reel in anti-static foiled bag, or 16000 pieces/reel. Carton sizes available: L240×W210×H90mm (32Kpcs, 1.5KG), L240×W210×H180mm (68Kpcs, 3KG), L390×W385×H270mm (320Kpcs, 13KG).
- Payment: T/T, Western Union, PayPal, Alibaba Pay
- Production lead time: 5-7 working days
- Samples: 3-5 days delivery
- Shipping freight quoted upon request
- Shipping ports: Shenzhen or Guangzhou, Mainland China
- Quantity discounts available
Frequently Asked Questions
Delivery Time: Samples: 3-7 working days; Bulk order: 7-15 working days. Shipping options: Express (3-5 days), Air (5-7 days), Sea (approx. 1 month).
Warranty: 2-3 years warranty.
Shipping Methods: Express (DHL, UPS, Fedex), Air freight, Sea freight, or your preferred shipping agent.
Our Services: 24-hour response to inquiries, fluent English support, OEM services including custom logo printing and packaging, experienced R&D team for OEM projects.
