High CRI 95 2835 LED with 50000 Hours Lifespan and 3V 0.2W Sanan Chip SMD LED

High CRI 95 2835 LED with 50000 Hours Lifespan and 3V 0.2W Sanan Chip SMD LED

High CRI 95 2835 LED with 50000 Hours Lifespan and 3V 0.2W Sanan Chip SMD LED
High CRI 95 2835 LED with 50000 Hours Lifespan and 3V 0.2W Sanan Chip SMD LED
High CRI 95 2835 LED with 50000 Hours Lifespan and 3V 0.2W Sanan Chip SMD LED
Product Details:
Place of Origin: CN
Brand Name: GH
Certification: EN62741,LM-80
Model Number: GH-2835WW02-3V01D
Payment & Shipping Terms:
Minimum Order Quantity: 4000PCS
Price: 0.002
Packaging Details: Aluminum bag vacuum packaging
Delivery Time: 3-5 working days
Payment Terms: T/T,D/P,D/A,L/C,Western Union
Supply Ability: 100KK PER month
Contact Now
Detailed Product Description
Luminous Flux: 34-36 Lumens Per Chip Forwardcurrent: 60mA - 120mA
Application: General Lighting, Backlighting, Automotive Lighting Lifetime: 50000Hrs
Productname: 2835 LED Chips Operating Tem: -40 - 85
Chiptype: SMD (Surface Mounted Device) Luminous Intensity: 400-3200mcd
Luminousflux: 20-25 Lumens Per Chip Chipsize: 2.8mm X 3.5mm
Warranty: 3 Years Packagetype: Tape And Reel
Operatingtemperaturerange: -40°C To 85°C Powerconsumption: 0.2W - 0.5W
Color: Cool/Natural/Warm White Color Tem: 2700 - 6500k

High Quality 2700K 3000K 0.2W 3.0-3.4V 24-26lm High CRI 95 Warm White 2835 SMD Sanan Chip LED
Product Overview

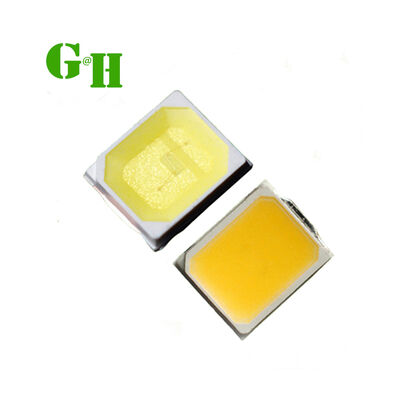

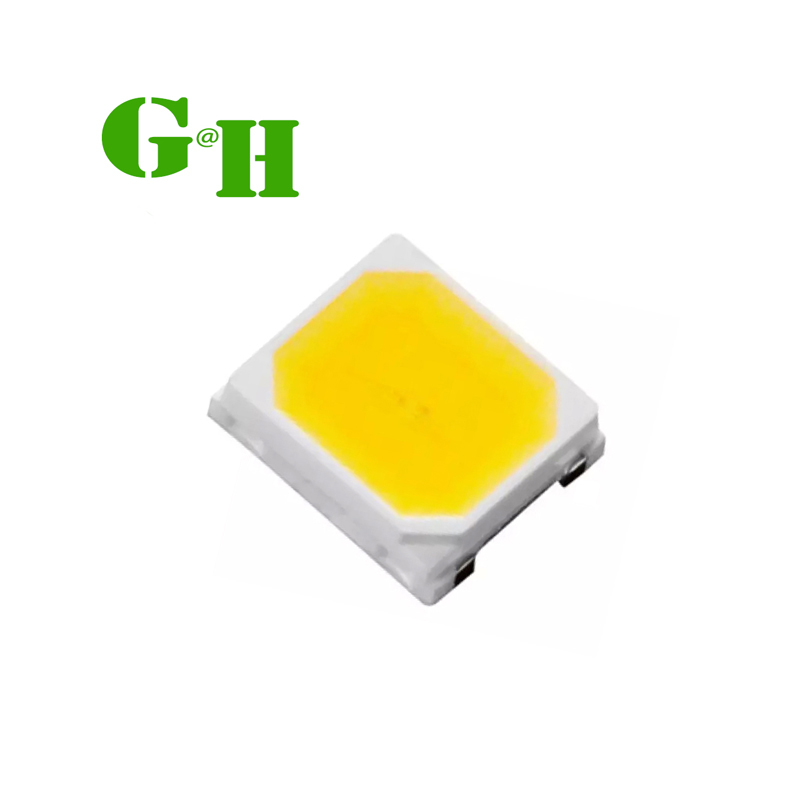

2835 SMD LED Chip product image

Guanghaoming manufactures high quality SMD LEDs including 2835, 5730, 3030, and 5050 models. Available in 3V, 6V, 9V, 18V, and 36V options with power ratings from 0.1W to 2W. Lumen outputs range from 24-34lm to 120-130lm. We also support full spectrum and plant growth LED customization.

This 2835 SMD high voltage 3V LED chip features Ra>95 color rendering, 0.2W high power, 60mA current, 12×27mil chip size, 24-26lm output, and uses Sanan chips. 1W version also available.

Technical Specifications
Model No. GH-2835WW02-3V02H
Power 0.2W
Voltage 3.0-3.4V
Current 60mA
Chip Brand SANAN
Chip Size 10×26mil
Lifespan 50,000 hours
Warranty 3 years
Quality Materials
  • Brand Chip: Epistar/Sanan brand LED chips with high lumen output, strong anti-static capability, excellent anti-attenuation performance, good consistency, and no dead lights. All chips LM-80 certified.
  • Gold Wire: 99.99% pure JoBo brand gold wire with high conductivity, excellent thermal conductivity, corrosion resistance, good toughness, and chemical stability.
  • Glue: Dow Corning glue imported from USA, stable in -65℃ to 338℃ environments with instant temperature resistance up to 350℃.
  • Phosphors: Intematix phosphors with high brightness, zero light decay, high luminous efficiency, excellent stability and consistency.
  • Copper Stick: Red copper bracket with excellent conductivity, containing internal leads to connect electrodes. Copper feet serve as positive/negative poles for welding.
LED chip materials and construction
Quality Testing & Standards

Each batch undergoes rigorous testing including high temperature, high humidity, cold and heat shock, and aging tests.

LED testing process and equipment
Color Reference

USA Energy Star IES LM-80 Color Reference Standard

Color reference chart for LED specifications
Soldering Conditions

Number of reflow processes shall be less than 2 times. Cooling process to normal temperature is required between first and second soldering process.

Usage Precautions
  • Static Electricity: Use wrist band or anti-static gloves when handling LEDs. All equipment must be properly grounded. Damaged LEDs show characteristics like lower forward voltage or failure to light at low current. Criteria: VF > 2.0V at IF=0.5mA
  • Moisture Proof Package: Recommended for storage and handling
  • Storage: Before opening package, keep at 30°C or less and 70%RH or less. Use within one year
  • After Opening: LEDs should be soldered within 24 hours after opening package
Applications
LED application examples and uses
Related Products
IC Driver and electronic components IC Driver And Electron Component - LED constant current drive IC, electronic parts, capacitors, resistors, diodes
SMD LEDs chips various models SMD LEDs Chip - 2835, 5050, 5730, 3030, 3535 models with 250-1050nm wavelength, UVC chips and full spectrum plant light chips
COB LEDs chips for strip lights COB LEDs Chip - Flexible COB LED strip lights for various LED lamp applications
Company Information
Shenzhen Guanghaoming Technology facility

Shenzhen Guanghaoming Technology Co., Ltd

GH is a rapidly developing company focused on high quality and continuous innovation. We are a high-tech enterprise integrating SMD LED chips and driver IC R&D, production, technical support, and after-sales service.

With over 100 employees including 62 technical staff, our 3,000 square meter workshop has an annual capacity of 2,000,000 Kpcs. We hold ISO9001:2000 quality system certification and all products comply with SGS, CE, RoHS, LM-79, LM-80, EN62471 standards.

We are committed to providing energy-saving and environmentally friendly products to worldwide customers.

Certifications
Company certifications and quality standards

The company holds ISO9001:2000 quality system certification. All products comply with UL, TUV, SGS, CE, RoHS, LM-79, LM-80, EN62471 standards.

Packaging & Shipping

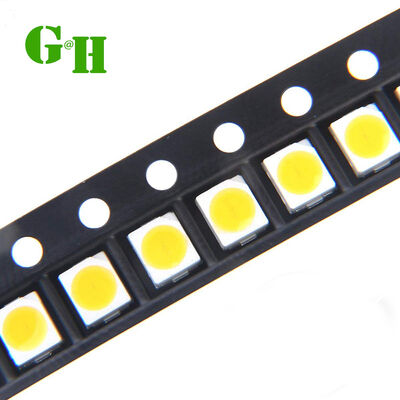

LED packaging options and specifications
Packaging Options
  • 4000 pieces/reel in anti-static foiled bag
  • 16000 pieces/reel in anti-static foiled bag
  • Carton Size: L240×W210×H90mm / 32Kpcs / 1.5KG
  • Carton Size: L240×W210×H180mm / 68Kpcs / 3KG
  • Carton Size: L390×W385×H270mm / 320Kpcs / 13KG
Shipping and payment information
Shipping & Payment
  • Payment: T/T, Western Union, PayPal, Alibaba Pay
  • Production Lead Time: 5-7 working days
  • Sample Delivery: 3-5 days
  • Shipping Freight: Quoted per request
  • Shipping Port: Shenzhen or Guangzhou, Mainland China
  • Discounts: Available based on quantity
Frequently Asked Questions
Delivery Time
  • Samples: 3-7 working days
  • Bulk order: 7-15 working days
  • Shipping methods: UPS/DHL/FEDEX/TNT express (3-5 days), air cargo (about 1 week), sea freight (about 1 month)
Warranty
2-3 years warranty
Shipping Methods
  • Express: DHL, UPS, Fedex - 3-5 working days
  • Air: 5-7 days delivery
  • Sea: Most economical, longer shipping time for large quantities
  • Your Shipping Agent: We work with your preferred forwarder
Our Services
  • 24-hour response to all inquiries
  • English-speaking sales and after-sales service team
  • OEM services including custom logos and packaging
  • Experienced R&D engineers for OEM projects
