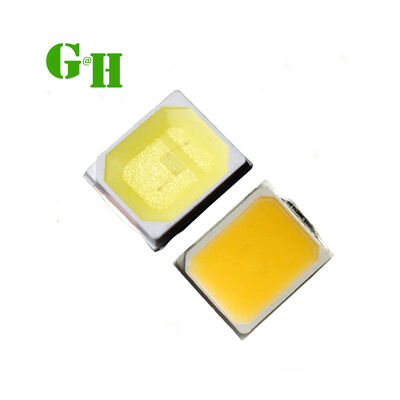

High Lumen 2835 SMD LED Chip with 34-36 Lumens 50,000 Hours Lifespan and LM80 Verification

Guanghaoming manufacture the High Quality SMD LED, 2835 5730 3030 5050 available ,3V 6V 9V 18V 36V for choose, matching 0.1W 0.2W 0.5W 1W 2W high power,high lumens 24-34lm 45-55lm 65-70lm 110-120lm 120-130lm. At the same time support full spectrum and plant growth LEDs customized production.welcome to ask detail.

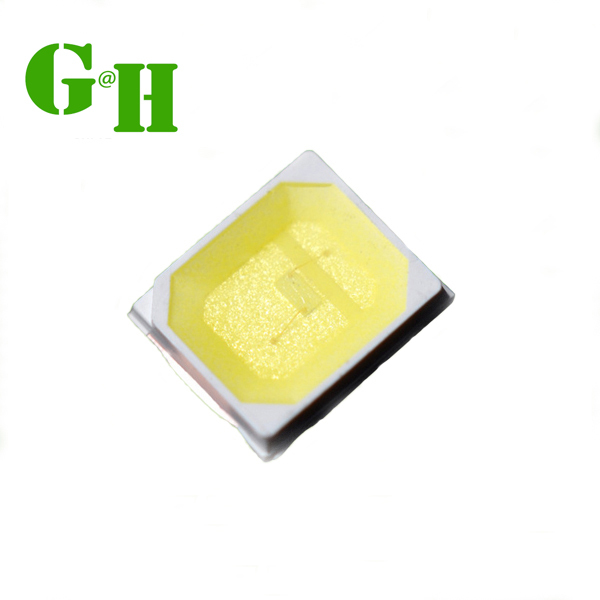

2835 smd high voltage 9V SMD LED Chip,0.5w high power led, 60ma 12*27mil chip size,60-70lm,Sanan chip. btw 1w also available.

Brand Chip
GH LED smd 2835 use Epistar Sanan brand LED Chips, high lumen, strong anti-static ability, strong anti-attenuation ability, good consistency and not dead light.All chips by LM-80.

99.99%pure gold wire
JoBo brand Gold wire has the advantages of high conductivity, good thermal conductivity, corrosion resistance, good toughness and good chemical stability.

Glue
Dow Corning Glue imported from the United States, can be fixed in -65℃-338℃ environment for long-term use.Instant temperature resistance of 350℃.

Phosphors
Intematix phosphor has high brightness and zero light decay.High luminous efficiency YAG phosphors are characterized by their high luminous efficiency, good stability and consistency.

Copper Stick
Red copper bracket, because copper conductivity is very good, there will be a lead inside it, to connect the electrode inside the LED lamp bead, LED lamp bead packaging after forming, the lamp bead can be removed from the bracket, the copper foot on both ends of the lamp bead becomes the positive and negative pole of the lamp, used for welding to LED lamps or other LED products.

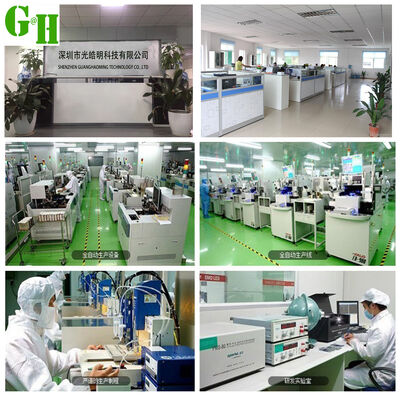

Each batch of Guanghaoming bead sample LEDs has passed high temperature, high humidity, cold and heat shock, aging test.

USA Energy Star IES LM-80 Color Reference Standard

1. Static Electricity It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.All devices,equipment and machinery must be properly grounded.Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF > 2.0V at IF=0.5mA)

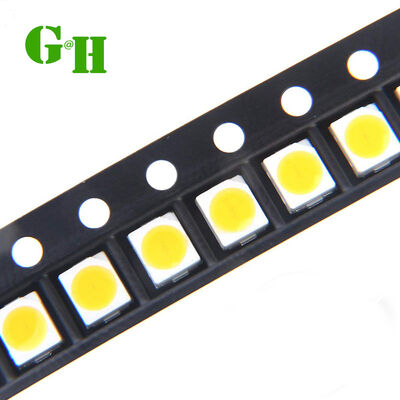

2. Moisture Proof Package It is recommended that moisture proof package be used .
3. Storage Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be used within a year.
4. After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package

The company holds ISO9001:2000 quality system, all products are compliant with UL TUV SGS,CE, RoHS,LM-79,LM-80,EN62471.
